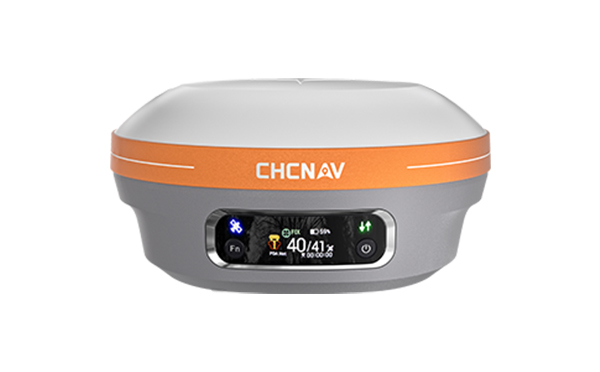

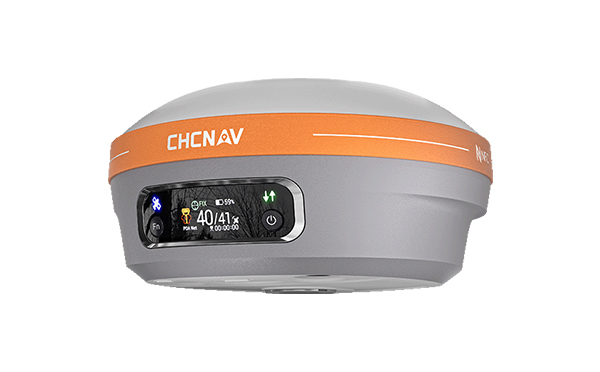

CHCNAV i83
- 1408 GNSS Channels
- IP67 for dust, water, shock, and vibration resistance
- Wi-Fi, Bluetooth, NFC, UHF, and 4G for data transfer
- +30% surveying efficiency with calibration-free IMU sensor
- Description
- Specifications
Description
The i83 GNSS receiver is a powerful IMU-RTK GNSS solution built for surveying, construction, and mapping professionals. Equipped with Wi-Fi, Bluetooth, NFC, UHF, and a 4G modem, it delivers versatile connectivity across multiple applications. Its power management allows 34 hours of continuous RTK rover operation, ensuring reliable performance for extended fieldwork.
| GNSS | Full GNSS |
|---|---|
| IMU | 200 Hz |
| Precision max. | 0.8 cm H / 1.5 cm V |
| Camera | No |
| Wireless | Bluetooth, Wi-Fi, NFC |
| Cellular | 4G LTE |
| Modem | 410-470 MHz, Rx/Tx |
| Operating | -40°C to +65°C |
| Weight | 1.15 kg |
| Dimensions | 152 x 78 mm |
| Battery life | Up to 34 hours RTK rover |
| Protection rating | IP67 |
| Drop resistance | 2 Metres |
