Cloud CL-V5
- Support nighttime fill light with photosensitive sensor coordination
- Built in RFID Reader
- Built In WIFI
- English language
- Support serial port, Wiegand output, output content support configuration
- High Resolution Dual Camera with IR Supporting
- Live Face Detection
- Recognition speed is fast, it takes about 20ms on face tracking and detection, 300ms on face feature extraction and Is on face comparison
- Support face recognition scene photo saving
- Support interface docking and support customization
- Wide Angle Recognition Height & Distance
- Description
- Specifications
Description

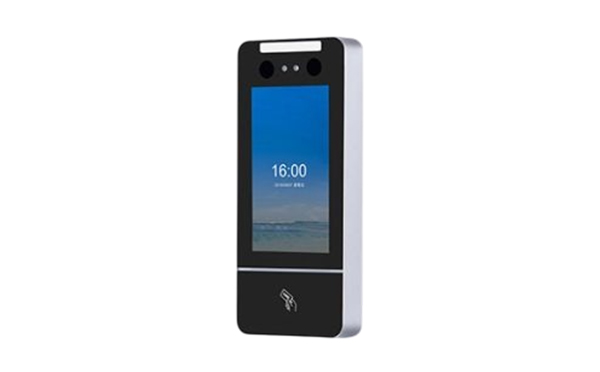

The Cloud CL-V5 is a Linux-based face recognition time attendance and access control terminal powered by a 1.2GHz dual-core processor with 256MB RAM and 8GB ROM. Designed with an IP54-rated enclosure for pedestrian passages in residential areas, offices, schools, and industrial sites, it features a 5-inch TFT IPS color touch screen ($720 \times 1280$ resolution) and a high-resolution binocular camera system with IR support for live face detection and dynamic video-stream tracking. The device supports a large capacity of up to 10,000 users, 10,000 face templates, 10,000 RFID/ID cards, 10,000 passwords, and 200,000 log records, achieving face comparison speeds in 1 second alongside nighttime fill light coordination. Communication and integration options include TCP/IP, built-in Wi-Fi, USB 2.0, RS485, configured Wiegand 26/34 input/output, as well as interfaces for electric locks, door sensors, exit buttons, and external readers.
| User | 10,000 |
|---|---|
| Face | 10,000 |
| Password | 10,000 |
| Card | 10,000 |
| Logs | 200,000 |
| Power supply | DC12V / 2A |
| Recognition distance | 0.5-2 meters (Live detection: 0.5-1 meter) |
| Operating temperature | -30 C – + 60o C |
| Communication mode | TCP/IP, USB 2.0, U-disk, WIFI |
