HID EikonTouch TC510
- SteelCoat® provides added durability—a requirement in high-traffic applications
- On-device processing for template generation, matching and storage
- Works well with dry, moist or rough fingerprints
- Encrypted USB communication
- ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) compliant
- Multiple USB connectors and cable lengths available
- Description
- Specifications
Description

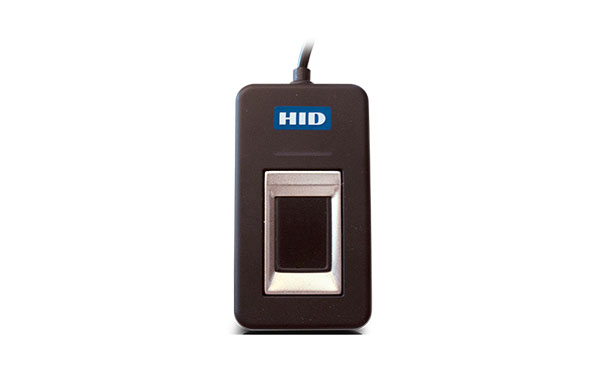

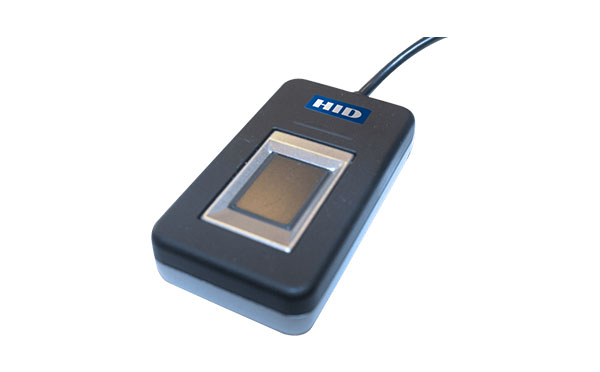

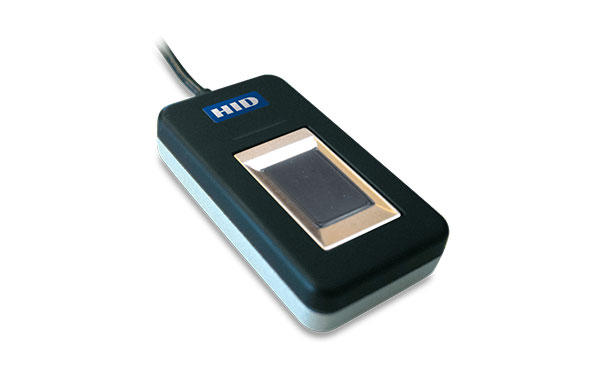

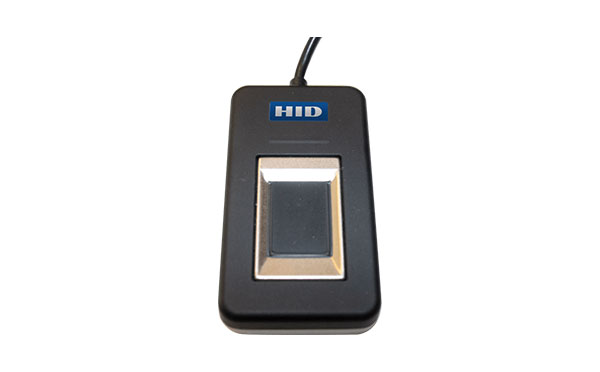

The EikonTouch TC510 USB capacitive fingerprint reader provides quick and reliable biometric authentication. The EikonTouch TC510 uses patented technology to capture fine print details, resulting in the ability to capture a wide range of fingerprints.
The TC510 fingerprint reader provides on-board processing for image capture and template generation, matching, and storage. This reader also protects sensitive data to and from the device using encryption up to AES-256.
In addition to the standard USB desktop versions, we’re also offering the Lightweight (LW) version. The LW version weighs only 23 grams (vs. 124 grams on standard version) with a very short cable (only 5mm), an ideal fit for mobile applications.
| Product Name | EikonTouch® TC510 Capacitive Fingerprint Reader |
|---|---|
| Technology | Capacitive silicon, TCS1S HID® TouchChip® |
| Output image resolution | 508 dpi |
| Scan Capture Area | 12.8 mm x 18 mm / 256 x 360 pixels |
| Life Expectation /Coating | min. 4 million touches, SteelCoat® |
| Image output format | Grayscale Image Depth 8-bit (256 levels) |
| On-board Data Storage | Up to 100 finger templates |
| Operating systems supported | Windows®, Linux® and Android® |
| Enclosure | IP65 for moisture and dust protection |
| Power Supply Voltage | 5.0 VDC supplied by USB |
Related Products

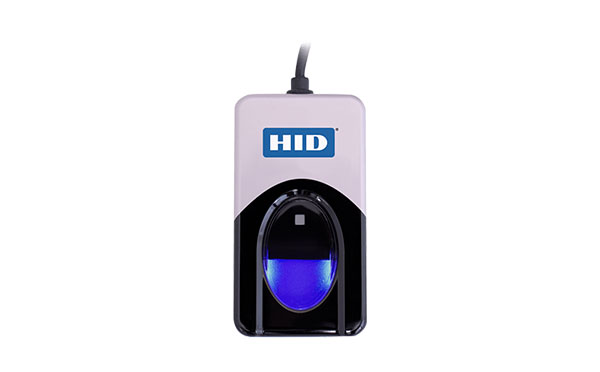

HID DigitalPersona 4500
SteelCoat® provides added durability—a requirement in high-traffic applications
On-device processing for...
More Details

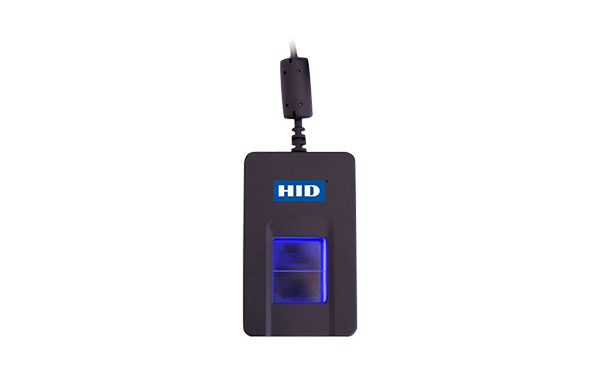

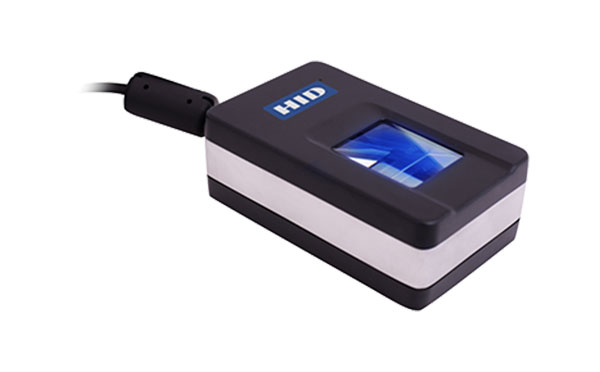

HID DigitalPersona 5300
SteelCoat® provides added durability—a requirement in high-traffic applications
On-device processing for...
More Details

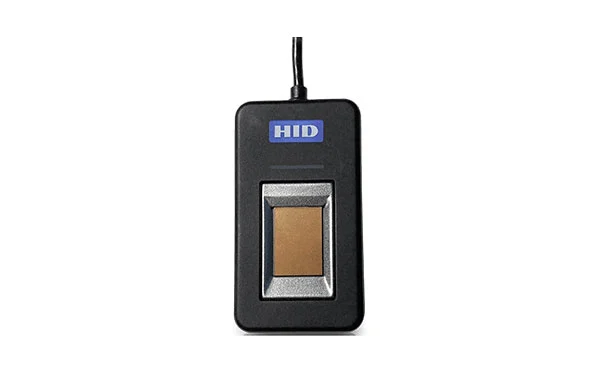

HID EikonTouch TC710
