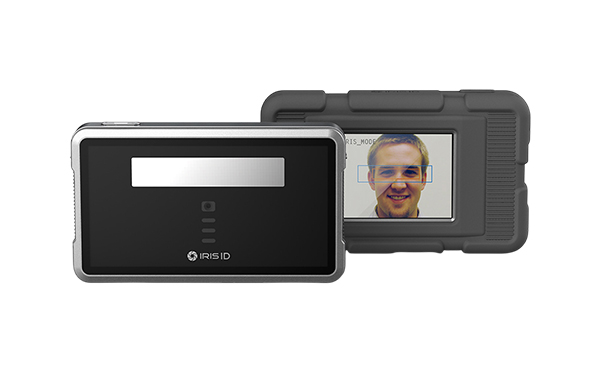

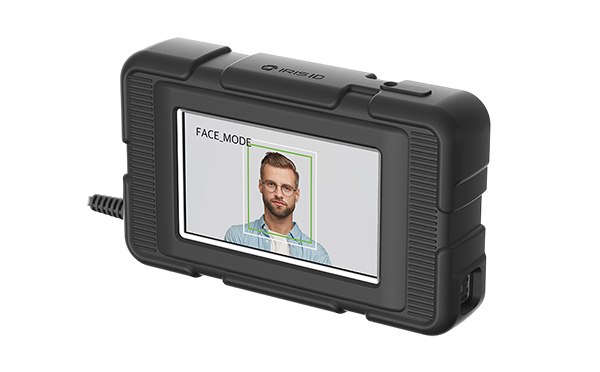

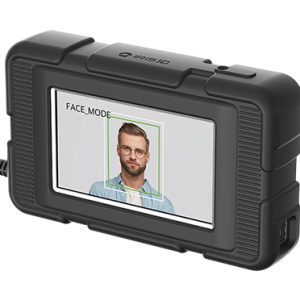

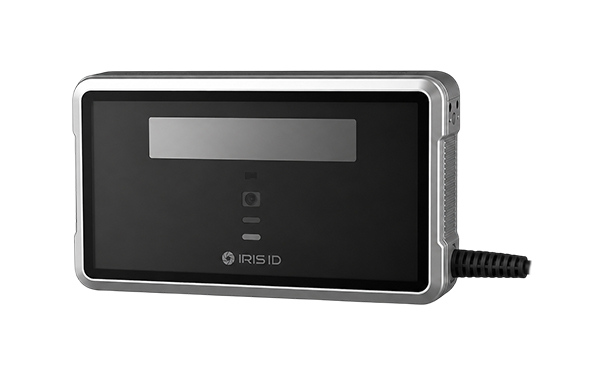

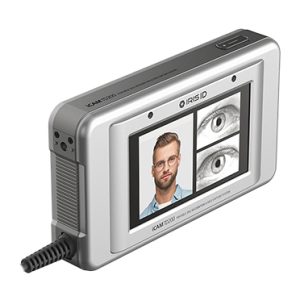

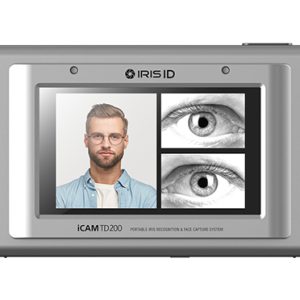

Iris ID iCAM TD200
- Simultaneous Iris and Face Capture
- High-Quality Color 2D Face Capture
- High-Speed Automatic Dual Iris Capture
- Intuitive Operator LCD Guidance System
- Standards-Compliant Hardware and Software
- Description
- Specifications
Description
The iCAM TD200 includes an optical system specifically designed and optimized to operate in perfect unison with the integrated high-speed multi-sensor imager array. The iCAM TD200 automatically captures and processes and outputs high-quality, ISO-compliant left and right iris images along with a color face image of a subject all in a single shot in under two seconds as the device or the subject approaches the optimal capture distance.
| Dimensions (W × H × D) | 150 × 83 × 30.5 mm |
|---|---|
| Weight | 0.23 kg |
| Camera Tripod Mount | Standard 1/4-20 Tripod Mount |
| Power Input | 5VDC via USB |
| Power Consumption | Idle: 2.3 W, Typical: 4.3 W, Max: 5.5 W |
| Speaker | 1 Watt, 41 mm Diameter Speaker |
| LCD Display | 4.3″ Color LCD |
| Shutter Button | Wake Up / Capture Face / Capture Scene / Force Iris Capture |
| Meta Data | Available |
| Operating Range | 40–60 cm (15–24″) |
| Operating Temperature | 0°C–50°C (32°F–120°F) |
| Storage Temperature | -20°C–60°C (-4°F–140°F) |
| Humidity | 0%–95%, Non-condensing |
| Certifications | CE, FCC, KC, ISTA, USB-IF, UKCA, Eye Safety, ISO Standard |
