Suprema BioStation 3 Max
- Identity-first security and enterprise compliance.
- Access at the blink of AI.
- One touch, every access, always connected.
- Designed to make an entrance.
- Description
- Specifications
Description

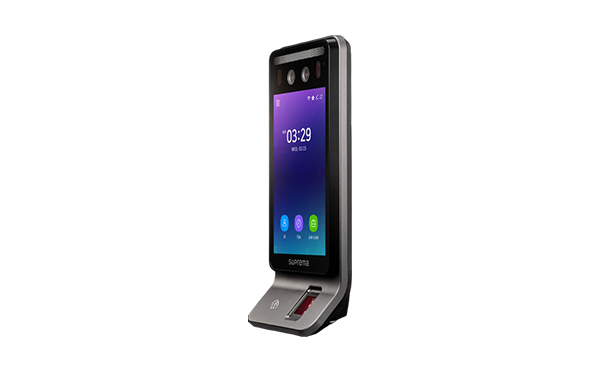

BioStation 3 Max is Suprema’s flagship AI-powered biometric terminal for identity-first security. Built for busy lobbies and mission-critical entrances, it combines a hardened, highly certified platform with fast, trusted multi-factor authentication and broad credential support in one enterprise-ready 7-inch touchscreen device.
| Model | BioStation 3 Max (BS3M-DB / BS3M-APB / BS3M-ODB / BS3M-OAPB) |
|---|---|
| Biometric | Face / Fingerprint (ODB & OAPB models) |
| Face Authentication | 0.3 ~ 1.3 m, Matching Speed: Within 0.2 seconds |
| Fingerprint | 500 dpi, 300 × 400 pixels (ODB & OAPB models) |
| RF Card | 125 kHz EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire, FeliCa |
| Mobile Access | NFC, BLE |
| QR / Barcode | Supported |
| PIN | Scrambled Keypad Supported |
| CPU | 1.4 GHz Quad Core |
| Memory | 32 GB Flash + 4 GB RAM |
| Display | 7″ IPS Color LCD |
| Display Resolution | 800 × 1280 pixels |
| Max. Users | 100,000 |
| Max. Credentials (1:N) | Face: 50,000 / Fingerprint: 100,000 / Card: 100,000 |
| Max. Credentials (1:1) | Face: 100,000 / Fingerprint: 100,000 / Card: 100,000 / PIN: 100,000 |
| Max. Text Logs | 5,000,000 |
| Max. Image Logs | 50,000 |
| Ethernet | 10/100/1000 Mbps, Auto MDI/MDI-X |
| RS-485 | 1 Channel, Master / Slave Selectable |
| Wiegand | 1 Channel Input / 1 Channel Output |
| Input | 3 Channels |
| Relay | 1 Relay |
| USB | USB 2.0 Type-C |
| PoE+ | Supported on APB / OAPB models (IEEE 802.3at) |
| Intercom | Supported |
| IP Rating | IP65 |
| IK Rating | IK06 |
| Operating Temperature | -20°C to 50°C |
| Power | 12 VDC / 24 VDC |
Related Products

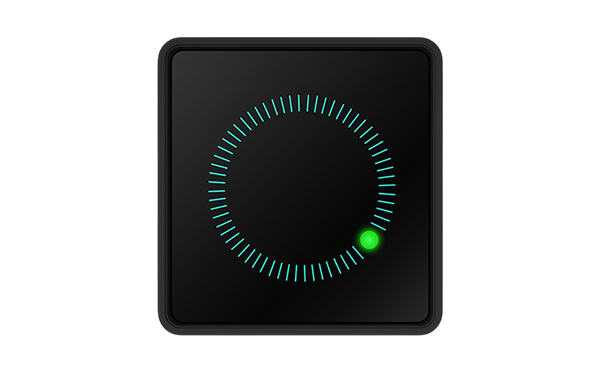

Suprema Airfob Patch
