Tiso Cyclone-L
- Indoor & outdoor operation in all weather conditions
- Multiple material, coating & rotor options
- Whisper-quiet, low-noise operation
- Low power consumption
- Wired remote control included
- Fail-safe free rotation during power failure
- Wide range of accessories
- Description
- Specifications
Description

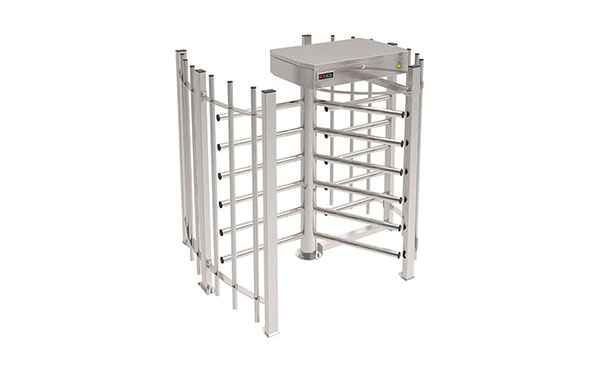

Cyclone-L is a type of outdoor shortened full-height turnstile with metal barrier rods. Barrier rods design may be straight as well as U-shaped. The range of modifications includes three or four rods types and also different types of metal finishing.
| Model Name | X-type – 90° / Y-type – 120° |
|---|---|
| Width | 1430 mm |
| Length | 1350 / 1168 mm |
| Height | 1314 mm |
| Passage width | 533 mm |
| Mechanism | Servo-driven (Triservo-M) |
| Blocking system | Two electromagnetic stoppers |
| Emergency mode | Free pass in both directions |
| MCBF | 5,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 55 W |
