Tiso Gate GS
- BMDrive® mechanism with 10,000,000 MCBF service life
- Wi-Fi configuration, diagnostics & parameter adjustment
- Service keypad for advanced diagnostics & maintenance
- Compatible with access control & identification systems
- Left, right & double-sided opening options
- HiSecurity & LowNoise operating modes
- Description
- Specifications
Description
Gate-GS is a motorized swing gate powered by the next-generation BMDrive® mechanism, developed to deliver smooth, quiet, and reliable operation even in demanding, high-traffic environments. With an extended service life of 10,000,000 MCBF, it provides outstanding durability, minimizes maintenance requirements, and reduces the total cost of ownership. Built-in Wi-Fi connectivity and a dedicated service keypad enable quick configuration, diagnostics, and commissioning, giving service engineers instant access to system settings for faster installation and more efficient maintenance.
| Model Name | Gate-GSH 650 / Gate-GSH 900 |
|---|---|
| Width | 815 / 1065 mm |
| Length | 225 mm |
| Height | 1000 mm |
| Passage width | 650 / 900 mm |
| Mechanism | BMDrive® servo-driven (BLDC) |
| Blocking system | Single electromagnetic brake |
| Operaon mode | CW (100°) and CCW (100°) |
| Emergency mode | Free exit/entry (gate is opening automatically) |
| MCBF | 10,000,000 cycles |
| MTTR | < 25 min |
| Operating temperature | +1/+40°C |
| Maximum power consumption | 55 W |
Related Products

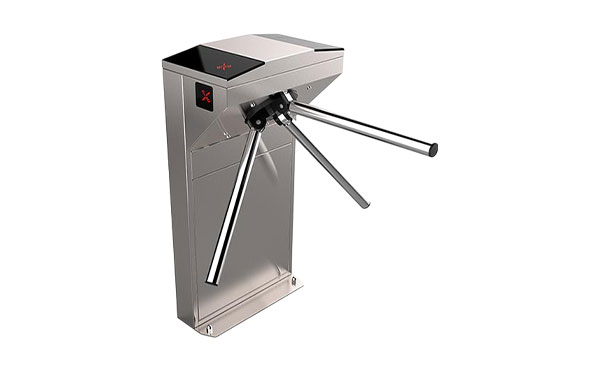

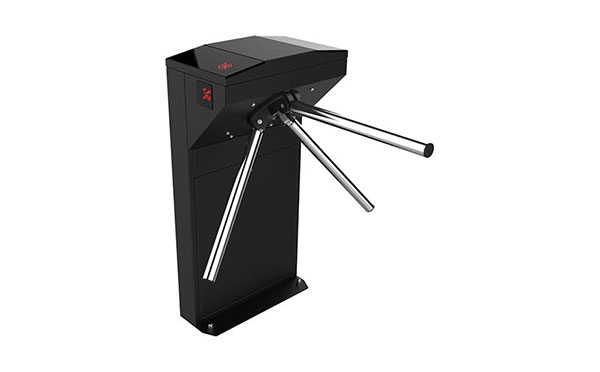

Tiso Bastion-М
Compatible with access control and ID systems
Stylish, ergonomic design with...
More Details
Tiso Centurion-М Twin
Integrates with access control and ID systems
Servo-driven tripod turnstile with...
More Details

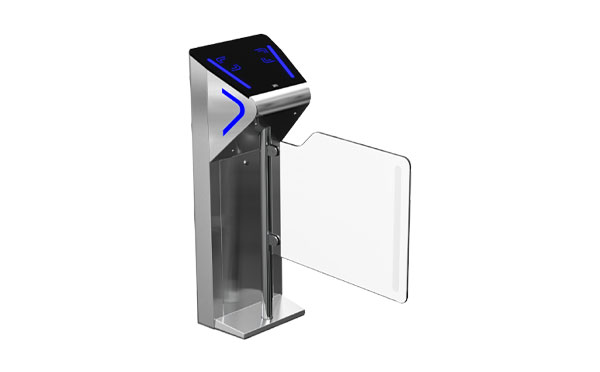

Tiso Onyx-GS
