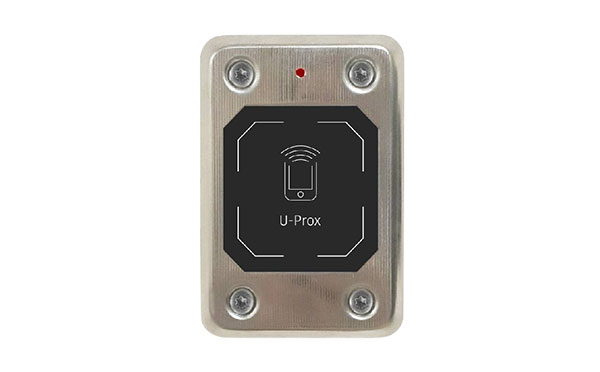

Tiso Prox-T SL steel
- Mobile credentials
- NFC and 2.4 GHz radio
- Adjustable 2.4 GHz distance (0.1 – 12 m)
- Mifare Plus SL1/SL3 and Mifare Classic
- Supports multiple formats of 125 kHz RFID
- Smartphone adjustable
- Adjustable Wiegand interface
- Convinient and safe
- Simple and convenient installation
- IP65 degree of protection
- Stainless steel case
- Description
- Specifications
Description
The adjustable versatile SmartLine (SL) reader for mobile credentials and proximity identifiers in conjunction with the Prox-T Mobile ID application and Prox-T IDs will allow any access control system to use smartphones as access system credentials.
| Read range | NFC, Mifare and RFID 125 kHz – up to 4 cm, 2.4 GHz radio – adjustable 10 cm – 12 m |
|---|---|
| NFC, 13,56 MHz | ISO 14443/15693 |
| RFID, 125 kHz | ASK and FSK |
| Case material | 1.2 mm stainless steel |
| Dimensions | 80 х 114 х 16 mm |
| Weight | 260 g |
| Ambient | IP65, -40°С . . . +60°C |
| Power supply | +9. . . +15 VDC, max current- up to 80 mA Voltage ripple – up to 500 mVp-p |
| Interfaces | Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64 bits, Wiegand Auto, RS-232 and TouchMemory |
