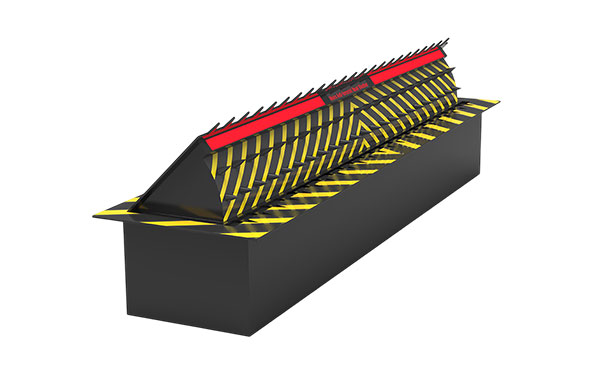

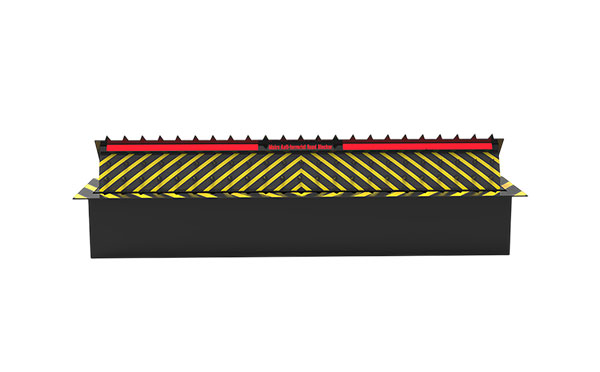

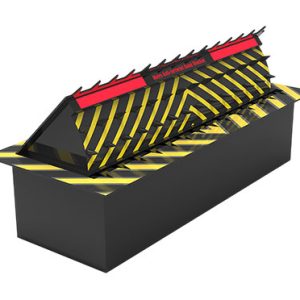

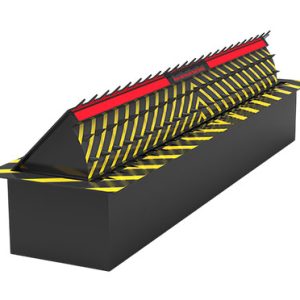

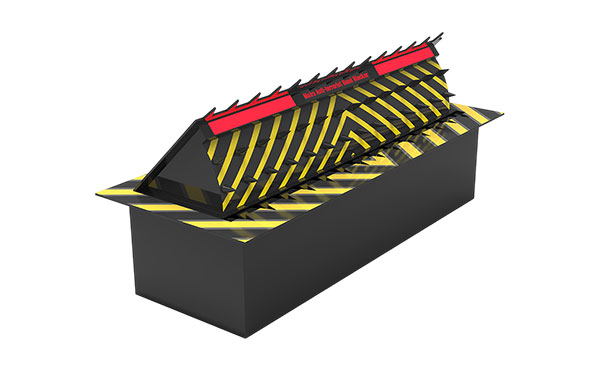

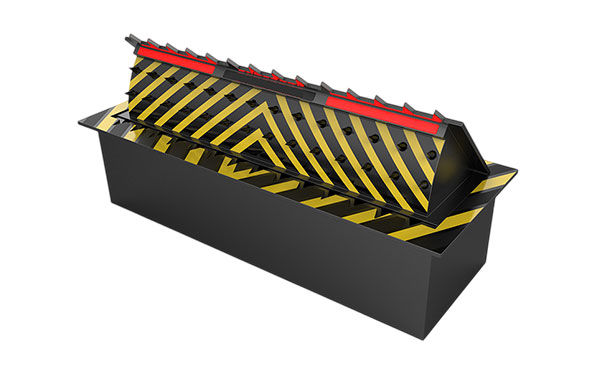

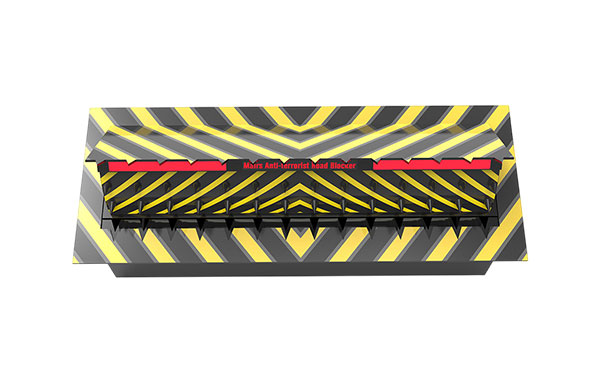

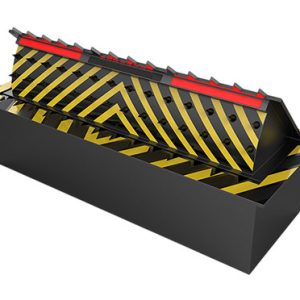

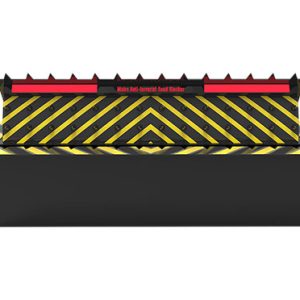

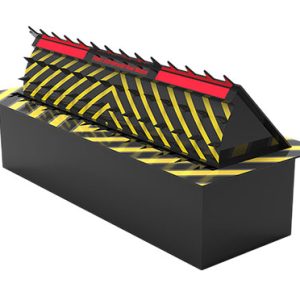

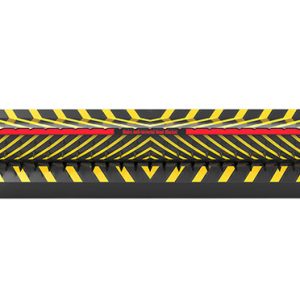

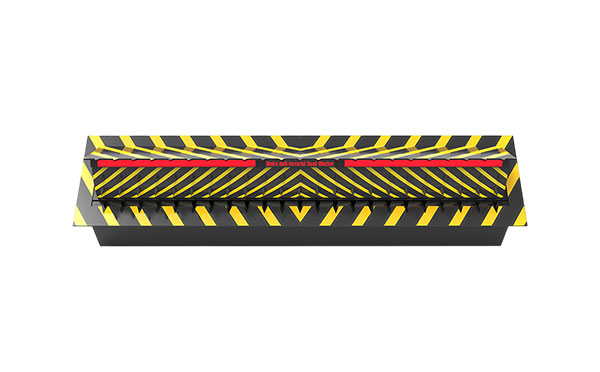

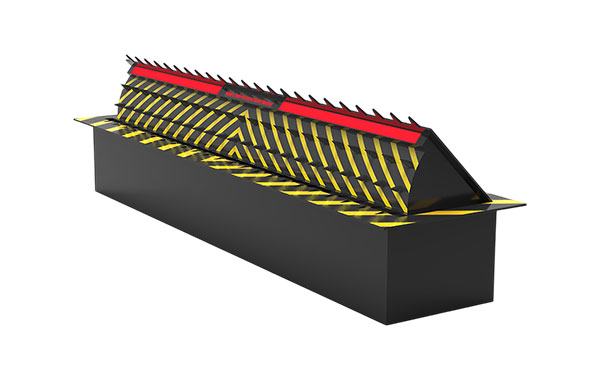

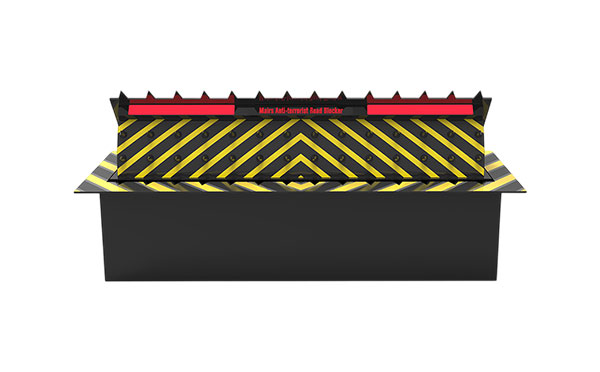

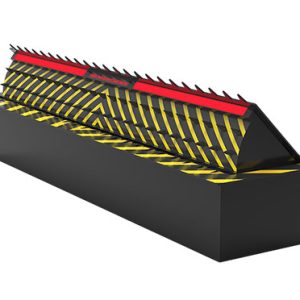

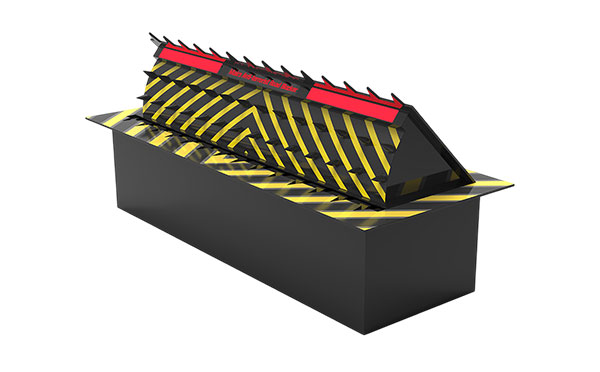

Uniqscan Hydraulic Road Blockers
- Can be manually raised and fall down if power cut
- Gang-control interface
- In rising and falling, reversible operation is available
- Hydraulic drive comes with hydraulic lock
- Welding cylinder
- PLC programming command control system
- LCD display,Both Chinese and English menu
- PLC built-in encryption system
- Description
- Specifications
Description
The Uniqscan Hydraulic Road Blocker is a heavy-duty, electro-hydraulic security system engineered for high-security environments like checkpoints, anti-terrorist areas, and critical infrastructure. Built from anti-rust painted A3 steel with IP68 double-sealed waterproofing, it supports passing loads up to 120-ton container trucks and features adjustable 1–3 second rising and falling times. The blocker operates via a 3.75 kW dynamic power system controlled by a PLC system with LCD support and 50–100m remote control capability. Additionally, it includes manual lowering for power outages, reversible operation during movement, dual dynamic oil pumps, integrated LED warning lights, and seamless compatibility with traffic light parking barriers.
| Control System | Electro- Hydraulic |
|---|---|
| Passing pressure | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time | ≤1-3S (adjustable) |
| fall time | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage | Three-phases 380V, (control voltage 24V) |
| Oil container | 60liter |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Material | A3 steel, Spray anti-rust paint |
| Waterproof | IP68, double sealed |
| LED light color | red,blue,green,white…(customized) |
| Color | red,blue,green,yellow…(can be customized) |
| Weight | 1.5T |
