Zkteco FaceDepot 7BL
- 7-inch touch LCD screen
- Visible light facial recognition
- Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
- Multiple Verifications: Face / fingerprint / Palm (Customized) / card / password
- 125KHz ID card (EM) /13.56MHz IC card and fingerprint optional
- Supplement light with adjustable brightness
- 10,000 face templates capacity
- Description
- Specifications
Description

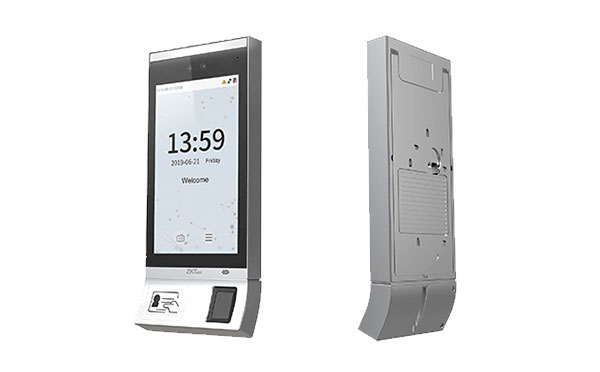

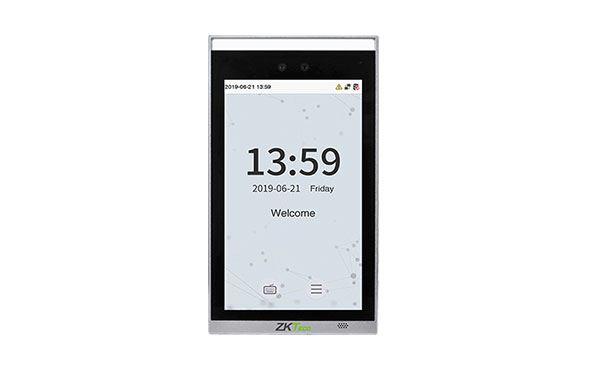

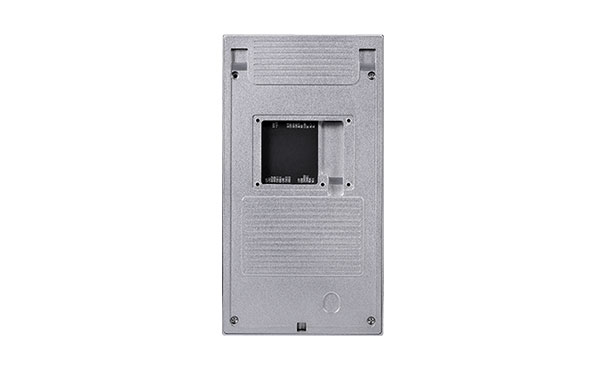

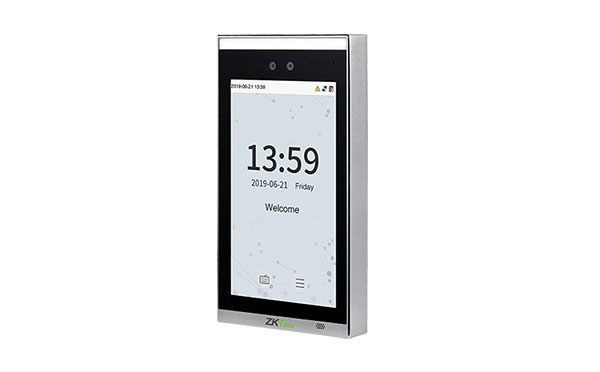

The FaceDepot-7BL is a Linux-based hybrid-biometric access control terminal equipped with a 7-inch LCD touch screen and ZKTeco’s Visible Light Facial Recognition technology. Powered by a 900MHz dual-core CPU and a 2MP WDR low-light camera with adjustable LED brightness, it delivers fast facial recognition in under 1 second from up to 2 meters away. The terminal supports multiple verification methods—including face, fingerprint, card, password, and optional palm recognition—with an onboard capacity of 10,000 face templates (expandable to 100,000) and 200,000 transaction logs. Designed with advanced anti-spoofing algorithms against photo, video, and 3D mask attacks, it offers robust connectivity through TCP/IP, optional Wi-Fi, RS485, and Wiegand interfaces, fully compatible with ZKBio CVAccess software.
| Face Capacity | 10,000 (Optional: 100,000) |
|---|---|
| Display | 7-inch Touch Screen |
| Palm Capacity | 3,000 (Customized) |
| Fingerprint Capacity | 10,000 (Optional) |
| Card Capacity | 10,000 (Optional) |
| Transactions | 200,000 |
| Operation System | Linux |
| Optional Functions | 125KHz ID card (EM) /13.56MHz IC card, Fingerprint |
| Facial Recongntion Speed | ≤1s |
| Biometrics Algorithms | ZKFinger V10.0 / ZKFace V3.9 & ArmaturaPalm (Customized) |
| Power Supply | 12V 3A |
| Working Humidity | 20% – 80% |
| Working Temperature | 0 °C – 45 °C |
| Dimensions (W*H*D) | 91.93 * 202.93 * 21.5mm |
| Supported Softwares | ZKBio CVAccess |
