Zkteco FR1500
- Single gang Standard junction box installation
- Flush-Mounted Design for neat installation
- RS-485 Communication Interface
- Z-ID Fingerprint Sensor
- Stainless Steel Front casing
- Optional Fingerprint Protective Cover
- Description
- Specifications
Description

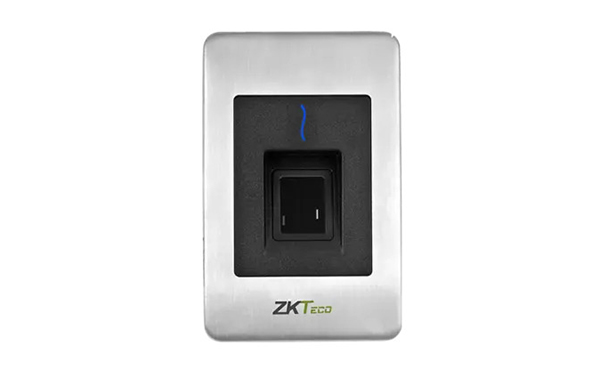

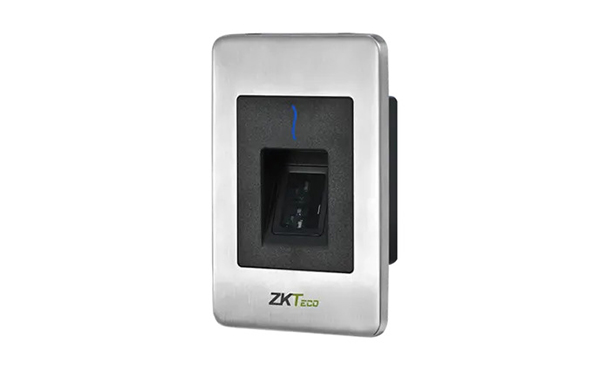

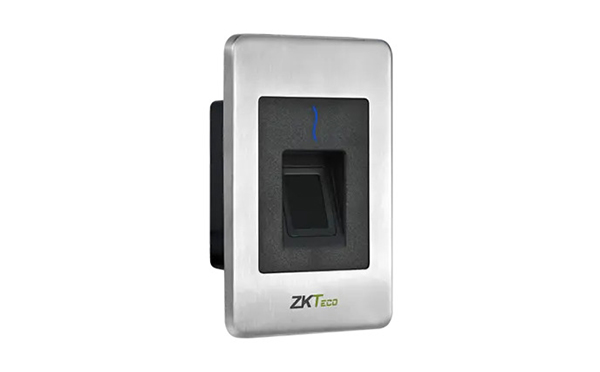

The ZKTeco FR1500 is a flush-mounted fingerprint reader designed with a stainless steel front casing for neat installation into standard single-gang junction boxes. Operating on an RS-485 communication interface and powered by a 1.0 GHz CPU with the ZKFinger v10.0 algorithm, it features an advanced Z-ID fingerprint sensor, a three-color indicator light, and a buzzer prompt. The reader is compatible with inBio/inBioPro controllers as well as standalone fingerprint devices, and offers optional features including a fingerprint protective cover and RFID card modules (125KHz ID, HID Prox, 13.56MHz Mifare, or HID iClass).
| Working Temperature | -10 °C ~ 45 °C |
|---|---|
| Working Humidity | 20 ~ 95% |
| Dimensions(LxWxH) | 121.3 × 77.3 × 38 mm |
| Algorithm | ZKFinger v10.0 |
| Stand-by Mode Power Consumption | 12V*60mA=0.72W |
| Peak Current of Fingerprint scanning | 140mA |
| Communication | RS485 |
