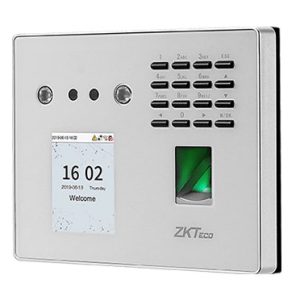

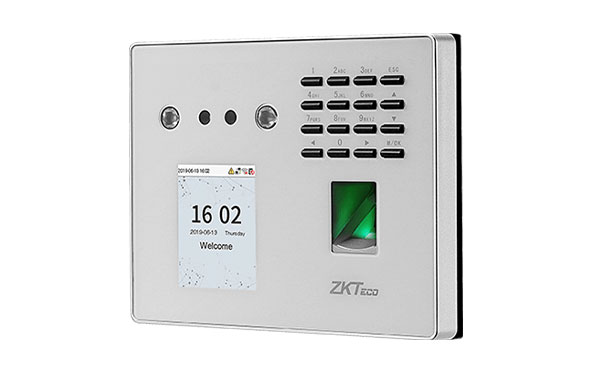

ZkTeco MB560 VL
- Visible Light Facial Authentication
- Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
- Multiple verification methods: Face / Fingerprint / Card / Password
- Optional card modules: 125KHz ID Card (EM) / 13.56MHz IC Card
- Supplement lighting with adjustable brightness
- TCP / IP network, USB Host and WiFi (Optional)
- Simple access control
- Description
- Specifications
Description
The ZkTeco MB560-VL is a Linux-based hybrid biometric time attendance and access control terminal powered by advanced Visible Light Facial Recognition technology. Featuring a 2.8-inch TFT color screen, a 1MP WDR binocular camera, and deep learning algorithms, it recognizes faces at distances up to 2 meters in under 0.35 seconds, while offering enhanced anti-spoofing protection against photos, videos, and 3D masks. The unit supports multiple verification methods—including face, fingerprint, RFID card, and password—with a capacity for up to 3,000 face templates, 3,000 fingerprint templates, and 10,000 users. It offers flexible communication via TCP/IP and optional Wi-Fi, basic access control interfaces (electric lock, door sensor, exit button), and seamless integration with both on-premise (ZKBio Time / ZKBio CVAccess) and cloud-based software like ZKBio Zlink.
| Model | MB560-VL |
|---|---|
| Display | 2.8″@ TFT Color LCD Screen (240*320) |
| Order ID | Binocular Camera @ 1MP WDR |
| Camera | Binocular Camera @ 1MP WDR |
| Operation System | Linux |
| Authentication Method | Fingerprint / Face / Card / Password (Physical Keypad) |
| Fingerprint Template Capacity | 3,000 (Optional: 5,000) |
| Face Template Capacity | 3,000 (Optional: 5,000) |
| Card Capacity | 10,000 (1: N) |
| User Capacity | 10,000 (1: N) |
| Transaction Capacity | 100,000 (Optional: 200,000) |
| Max. User Password Length | 8 Digits |
| Certifications | ISO14001, ISO9001, CE, FCC |
| Installation | Wall-mount |
| Dimensions | 170mm*138mm*38.55mm (L*W*H) |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Operating Temperature | 0°C to 45°C |
| Power Supply | DC 12V 1.5A |
