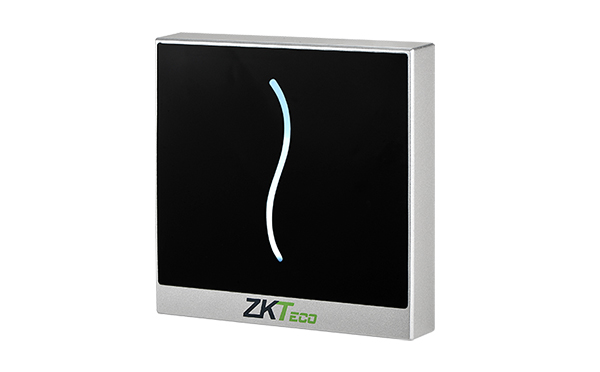

Zkteco ProID20-BE
- High stability and energy efficiency.
- LED light and touch keypad.
- On-site adjustable Wiegand output (26 or 34 bits).
- Waterproof design suitable for indoor or outdoor applications.
- Black or white color available.
- Description
- Specifications
Description
The ProlD family of card readers is designed to offer card technology options to customers, such as 125 kHz EM, 13.56 MHz IC, DESFire, FeliCa, or Legic. With robust all-weather protection and a beautiful modern design, the ProlD family is the best choice for indoor or outdoor applications.
| Read Range | ProlD10 EM/IC 3.5 cm ProlD20/30/40 EM/IC 5 cm. |
|---|---|
| Reading Time | ≤300ms |
| Input Port | External LED Control External Buzzer Control |
| Material | ABS+PC |
| Output Format | Wiegand 26-bit or 34-bit Adjustable |
| Power | Operating Voltage: 7-13V DC Current Draw < 80 mA |
| LED | Pulsing White Standby Light Red and Green LEDs |
| Operating Temperature | -20°C-65°C |
| Operating Humidity | 10%~90% Relative Humidity Non-Condensing |
| Audio | Beep |
| Index Protection | IP65 |
| Dimensions | ProlD10: 80.5 x 44 x 15 mm. ProlD20/30: 90 x 90 x 16 mm. ProlD40: 116 x 75 x 15 mm. |
