ZkTeco SA60

  • Password length: 4 to 6 digits
  • RFID: 125kHz ID Card (standard) / 13.56MHz IC card (optional)
  • High user capacity: Maximum 2,000 users and 2,000 passwords, accommodating extensive access control requirements

Description

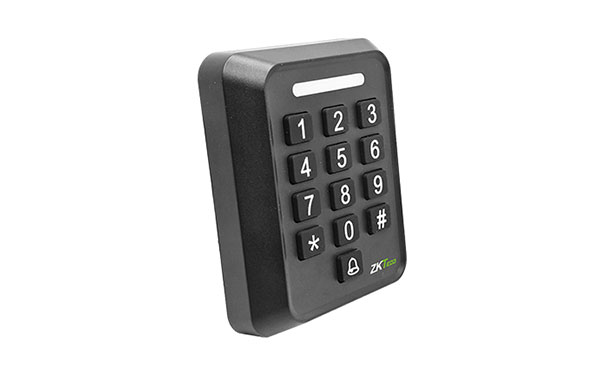

The ZkTeco SA60 is a compact standalone access control terminal designed for simple and reliable security management using RFID and password authentication. Encased in an ABS housing available in black or white, it supports up to 2,000 users across three verification modes: RFID card only, 4-to-6-digit PIN code only, or card plus PIN combination. The device offers ultra-fast card verification in under 0.16 seconds and features standard 125kHz ID card reading with optional 13.56MHz IC card support. Equipped with an integrated keypad, LED status indicators, and an internal buzzer, the SA60 includes direct interface connections for an electric lock, door sensor, exit button, and external doorbell.

ModelSA60
User Capacity2,000
Card Capacity2,000
Verification Speed<0.16s @ Card
Recognition Distance<5cm @ Card
CommunicationElectric Lock*1, Door Sensor*1, Exit Button*1, Doorbell*1
Power SupplyDC 12V
Operating Temperature-20°C to 60°C
Operating Humidity20% to 80% RH (non-condensing)
Dimensions (L*W*H)103.5mm x 86mm x 20mm
Gross Weight0.15kg
Net Weight0.1kg
InstallationWall-mount
Housing MaterialABS
CertificationsISO9001, ISO14001
