Zkteco TS2000Plus Series
- There are multi different access solution owned by ZKTeco, including RFID and biometric technology or QR code verifcation. Also allow customer to install third-party systems.
- Safety function always standby, turnstile drop arm automatically. It making sure people exit easily during power off, emergency case like fire case happening.
- The turnstile enable to be setting as different pass mode, like one way free, one way standard. Also the device memory mode allow group user pass-through.
- With security key easily to access turnstile inside. It will let installer or administrator will feel convenience operation & maintenance device.
- Description
- Specifications
Description

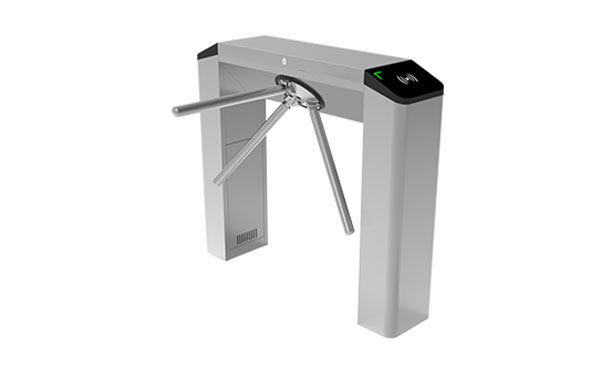

ZKTeco’s TS2000 Plus series is a bridge type tripod turnstile. This tripod turnstile’s cabinet using SUS304 stainless steel, ensuring long durability. TS2000 Plus other an aesthetically verifcation area for user, with a streamlined under mount RFID card and QR code reader. The turnstile not only have effciently people fowing control and also providing safety function such as automatically drop arm if power off or emergency signal input. The tripod arm can set bi-directional movement as a standard function. Also, users can set the tripod arm in a different working mode by direction All in all, this tripod turnstile is very easy to be setting up for most kind of indoor or outdoor situations, such as schools, museums, factories, gyms, etc.
| Audio Indicator | Buzzer |
|---|---|
| Lane Width | 550mm |
| Barrier Movement Type | Rotating |
| Lid Material | PC Plastics+Tempered Glass Cover+SUS304 Stainless Steel |
| Chassis Material | SUS304 stainless steel (T = 1.2mm) |
| Chassis Color | Silver-gray |
| ripod Barrier Material | SUS304 stainless steel |
| Footprint | 260*1110 (mm) |
| Motherboard Function | Door open duration, access mode |
| Barrier Width | 515mm |
| Accessibility | Wireless remote control, wired remote control, QR reader |
| Power Supply | 110V/220VAC@50 to 60 Hz, DC 12V |
| Power Rating | 10V A (Standby) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 65dB |
| MTTR | Less than 60 minutes |
| MCBF | 2 million |
| Net weight | 30 kg |
| Dimension | 775*1100*980mm (L*W*H) |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 85% RH (Non-condensing) |
| Certifications | CE, FCC, UKCA, ISO 9001 |
| Security Level | Medium |
| Emergency Mode | Support (drop arm) |
