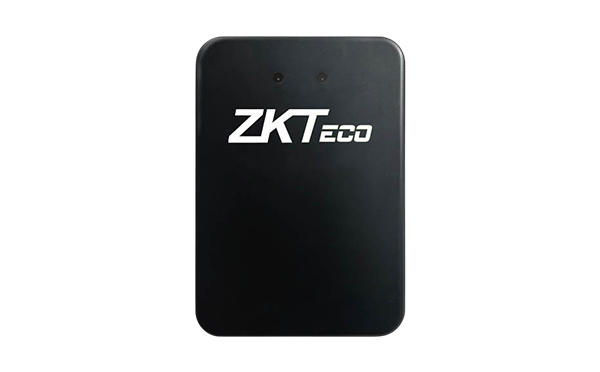

Zkteco VR10
Category: Zkteco Access Controls
- Support vehicle and people detection
- Flexible installation, easy debugging
- Immunity to ambient weather conditions
- Detection distance can be adjusted from 1 m to 6 m.
- Description
- Specifications
Description
The radar sensor for vehicle detection, VR10, is developed to detect and identify various vehicles (motorcycles, cars, trucks), pedestrians, and small (distant) objects within a detection area from 1m to 6m around the boom barrier. Through linkage with the main board of the barrier, VR10 can help prevent vehicles from damaging any properties or passers-by while allowing automatic boom closing smashing the obstacles or technology. Compared to the loop detector, it offers flexible installation. The device is at a lower risk of damage due to high impact too.
| Model | VR10 |
|---|---|
| Detection Distance | 1-6m |
| Working Frequency | 79 GHz |
| Working Voltage (V) | DC 10-16V |
| Working Current | 0.2A |
| Power Consumption (W) | ≤2.5 |
| Transmitter Power Output | 12.5 dBm |
| Antenna Gain | 10dBi |
| Interface | RS485, Relay |
| Product Size (mm) | 107.5 * 73.2 * 18 |
| Package Dimensions (mm) | 166 * 94 * 97 |
| Net Weight | 228.4g |
| Working Temperature (°C) | -40°C ~ 85°C |
| Protection Standard | IP67 |
