Zkteco ZK D3180

  • 18 detection zones
  • 500 sensitivity levels
  • 7’’ LCD display
  • Separate counting in and out
  • TCP/IP communication
  • Gate linkage
  • Support App
  • Simple installation and use
  • Synchronous sound & LED alarm

Description

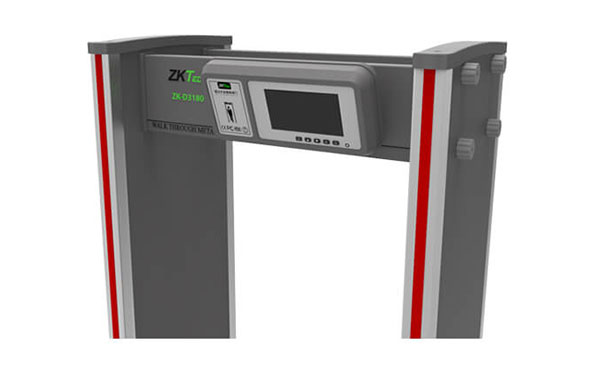

The Zkteco ZK-D3180 (Standard: 18 Zones) is a premium walk-through metal detector engineered for high-security, high-traffic venues such as shopping malls, schools, exhibition centers, and government offices. It features 18 independent detection zones with 500 adjustable sensitivity levels per zone to precisely identify and locate metallic threats. Operating on a large 7″ LCD display with password protection, the unit supports separate in-and-out traffic counting alongside alarm statistics. Modern connectivity features include TCP/IP communication, mobile app support, remote control, and direct turnstile/gate linkage. Built with fireproof material, a waterproof bottom, and strong anti-interference protection, it delivers human-safe performance with synchronous sound and LED alerts.

Power SupplyAC100V to 240V (DC12V/3A)
Working Temperature-20°C to 55°C
Working Humidity<95% (non-condensing)
Working Frequency5.7KHz to 9.6KHz
Input VoltageDC12V
Working Current1.2A
Running Power14W
Dimensions of Product with Packaging (L*W*H)2280*347*660 (mm)
Dimension (L*W*H)2226*845*580 (mm)
Lane Size (L*W*H)2000*710*498 (mm)
Weight with Packing52kg
