Zkteco ZK D3180V

  • Embedded 2MP camera capturing live video with automatic facial snapshots linked to alarm records
  • 18 independent detection zones with 500 adjustable sensitivity levels for high-precision threat pin-pointing
  • 7-inch LCD screen displaying real-time video feeds, signal strength indicators, and traffic counters
  • High-capacity internal storage keeping over 100,000 detection and event log records
  • Flame-retardant ABS construction with a waterproof base, safe for pregnant women and pacemaker users

Description

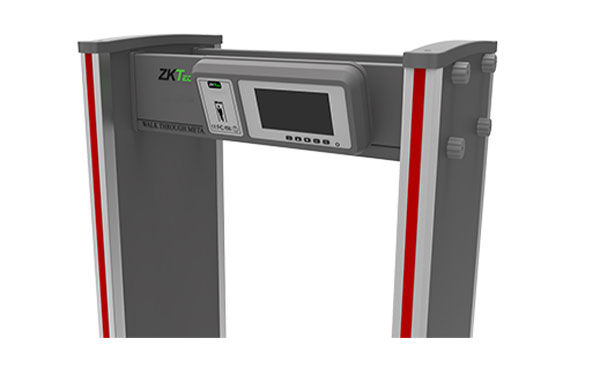

The ZKTeco ZK-D3180V is an advanced walk-through metal detector featuring an embedded 2MP monocular camera designed for high-security environments like schools, corporate entrances, and public venues. It combines 18 independent detection zones with 500 adjustable sensitivity levels to precisely detect ferrous and non-ferrous weapons. Operating via a 7″ LCD color display with password protection, the unit streams live video, tracks pass and alarm counts, and automatically captures passenger face snapshots linked to up to 6 alarm records. It boasts an event log capacity exceeding 100,000 records, synchronous sound and LED visual alerts, strong anti-interference performance, and a durable enclosure made of flame-retardant ABS polymer that is completely safe for pregnant women and pacemaker users.

Display7″ LCD Color Screen (800*480)
Physical Keypad5 keys
Photo Resolution240*320
CameraEmbedded monocular 2MP camera
Storage of Records>100,000
Power SupplyAC100V to 240V (DC12V/3A)
Input VoltageDC12V
Operating Current1.5A
Operating Power18W
Self-DiagnosisYes
Operating Temperature-20°C to 55°C
Storage Temperature-25°C to 60°C
Operating Humidity<95% RH (non-condensing)
Operating Frequency5.7KHz to 9.6KHz
Dimensions (L*W*H)2226*845*580 mm
Lane Size (L*W*H)2000*710*498 mm
Supported SoftwareCE,FCC, ISO9001
