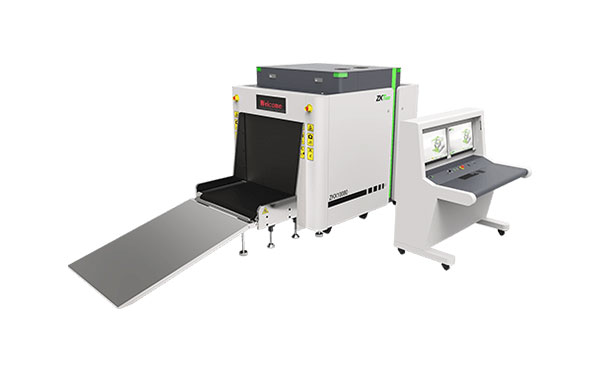

Zkteco ZKX10080
- Large 1000 mm x 800 mm tunnel size designed for screening oversized baggage and bulky parcels
- Dual-energy X-ray generator producing clear, detailed imaging for fast threat identification
- Lowered conveyor height ($385\text{ mm}$) and folding design for easier loading and reduced transport volume
- Adjustable belt speed ($0.2\text{ m/s}$ to $0.4\text{ m/s}$) paired with bi-directional scanning flexibility
- Fingerprint-authenticated control console on a dual-monitor operator desk to prevent unauthorized access
- High steel penetration performance capability penetrating up to $32\text{ mm}$ of steel
- Integrated high-density alerts alongside explosive and drug auxiliary detection
- Built-in Threat Image Projection (TIP) software features and seamless ZKBio SIS platform compatibility
- Description
- Specifications
Description
The ZKteco ZKX10080 is a dual-energy X-ray inspection system specifically engineered for screening large baggage, parcels, and bulky cargo up to 100 cm x 80 cm in size. Utilizing a high-quality dual-energy X-ray generator and superior imaging algorithms, it produces clear scanning images that allow operators to visually identify potential threat items with high accuracy. Designed with operational convenience and security in mind, the system features a lowered conveyor height for easier loading, adjustable belt speed, bi-directional scanning, a folding design to reduce transport volume, and side access doors for simplified maintenance. It also includes biometric fingerprint identification on a dual-monitor operation desk, built-in threat detection alerts (high density, explosive, and drug auxiliary alerts), Threat Image Projection (TIP), and full integration with ZKBio SIS management software.
| Tunnel Size (W*H) | 1000*800 (mm) |
|---|---|
| Speed | 0.2-0.4m/s (adjustable) |
| Height of Transmission Belt | 385 mm |
| Maximum Load | 200 kg (Adequate distribution) |
| Wire Resolution | 36 AWG |
| Space Defnition | Horizontal Φ1.0mm \ Vertical Φ2.0mm |
| Penetrate Defnition | 32 AWG |
| Penetration | 32mm steel board |
| Film Safety | ASA/ISO1600 standard of film safety |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
