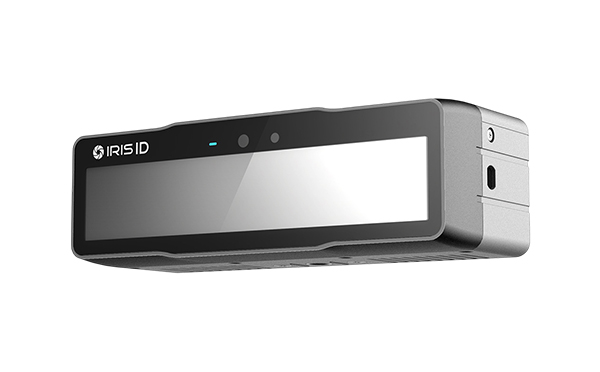

Iris ID iCAM R100 Series
- High-speed iris capture & Matching in a compact package
- On or Off Device Iris Template Matching
- Up to 100K user records, local 1:N matching in 1 second
- National ID Quality Iris Image—Standards Compliant
- Intuitive User Interface with Virtual LED Indication
- 5 MP face camera White LED flash
- Comfortable Capture Distance: ~28~38 cm (11~15 Inches)
- Flexible Mounting Options
- Power Adapter Powered
- Description
- Specifications
Description
The iCAM R100 performs high-speed dual iris capture and outputs high-quality ISO standards-compliant images. Both eyes can be simultaneously captured. The R100 provides an unparalleled intuitive user interface, which makes the process easier for the user and operator. The R100 is also equipped with an orientation sensor and left and right iris capture management controls, which can be selected prior to or during the process
| Dimensions (W × H × D) | 5.41 × 2.21 × 1.69 in (137.6 × 56.3 × 43 mm) |
|---|---|
| Weight | 0.52 lbs (240 g) |
| Power Input | Power Adapter Powered, 5VDC @ ?A (TBD) |
| Iris Camera | 1.2 MP Auto & Manual Dual Iris Capture with B&W Image Sensor |
| Iris Capture Range | 11″–15″ (28–38 cm) |
| Face Image Camera | CMOS 5 MP |
| Flash | High Output Flash for Face Capture |
| Interface | USB 2.0 or Higher |
| Orientation Sensor | Built-in Orientation Sensor |
| Speaker | 1.2 W |
| Certifications | TBD |
