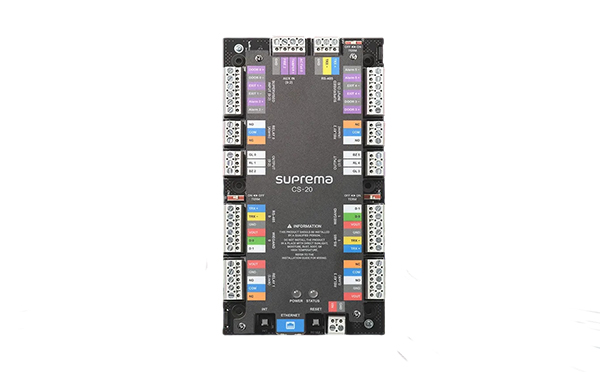

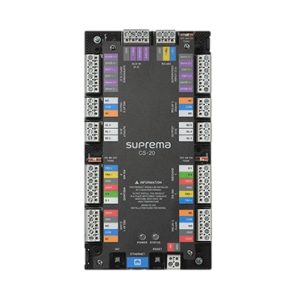

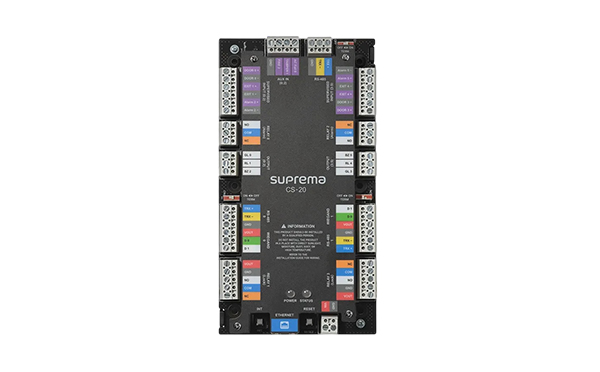

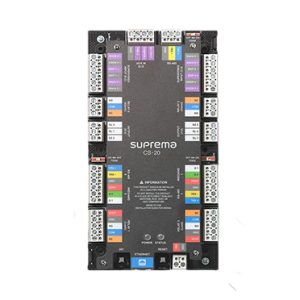

Suprema Corestation 20
- Centralized Access Control with BioStar 2 Platform
- High Scalability and Flexible Deployment
- Robust Security and Serial Connection Failure Resilience
- Description
- Specifications
Description
The Suprema CoreStation Family sets a new standard in access control by combining centralized intelligence with exceptional versatility. Whether you need advanced fingerprint recognition matching or streamlined card-based access, CS-40 and CS-20 models provide scalable, secure, and future-ready solutions—all powered by the robust BioStar 2 platform. From global enterprises to agile SMBs, CoreStation is the heart of secure infrastructure that grows with you.
| Model | CS-20 |
|---|---|
| Max. Users | 500,000 |
| Max. Credential (1:1) | Card: 500,000 / PIN: 500,000 |
| Max. Text Log | 5,000,000 |
| CPU | 1.2 GHz Single Core |
| Memory | 4 GB Flash + 256 MB RAM |
| Crypto Chip | Supported |
| Ethernet | 10/100 Mbps, Auto MDI/MDI-X |
| Network Protocol | TCP, UDP |
| RS-485 | 3 Channels |
| RS-485 Communication Protocol | OSDP V2 Compliant |
| Wiegand | 2 Channels |
| Input | 6 Channels |
| Relay | 4 Relays |
| Supervised Input | 6 Channels |
| Output | 6 Channels |
| AUX Input | 3 Channels (AC Power Fail, Tamper, Fire) |
| PoE+ | Not Supported |
| SAM Slot | Not Supported |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 0% to 80%, Non-condensing |
| Weight | 285 g |
| Dimensions (W × H × D) | 100 × 190 × 33.9 mm |
| Power | 12 VDC, Max. 2.8 A / 24 VDC, Max. 1.4 A |
| Certifications | CE, UKCA, KC, FCC, RCM, IC, RoHS, REACH, WEEE, EAC |
Related Products
Suprema BioEntry W2
Best-in-class Performance
Improved Accuracy & Security
Expanded Capacity
Rugged Structure
Multi-RFID...
More Details
Suprema Corestation
Centralized Biometric Access Control
Enterprise-level Capacity
Improved Security
System Flexibility and...
More Details

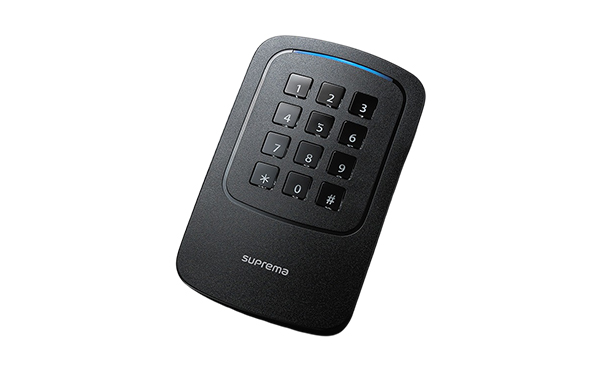

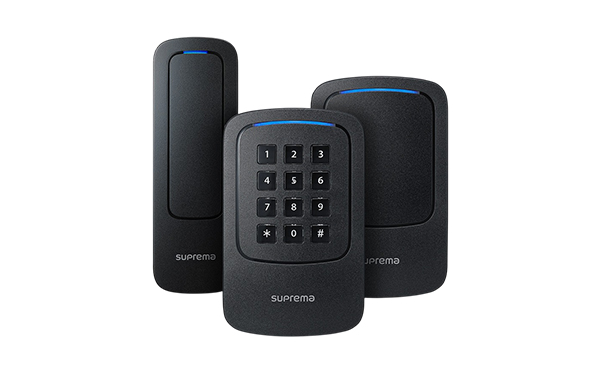

Suprema XPass 2
