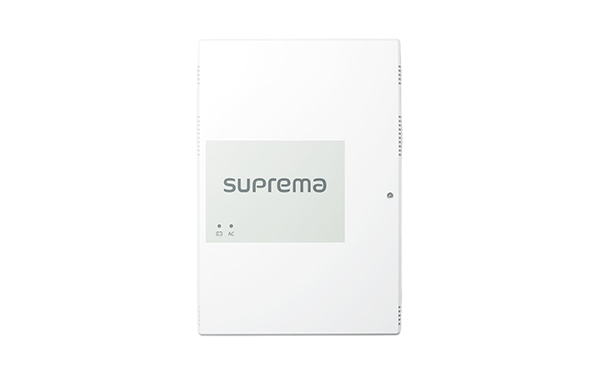

Suprema Enclosure
- All-in-One Controller Enclosure
- Power Status Monitoring
- Wall-Mount Design
- Durable ABS Construction
- Multiple Device Support
- Electrical Protection
- Description
- Specifications
Description
Enclosure is exclusively used with CoreStation. Enclosure’s high performance is a result of its backup battery, tamper switch, an 8-inch power distribution board, and power status LED. Its long battery life ensures that there are no interruptions in operation. It is a unique all-in-one package which has all the components of a controller.
| Model Name | ENCR-10 |
|---|---|
| Supported Products | CoreStation (CS-40), Output Module (OM-120), Input Module (IM-120) |
| Material | ABS Plastic |
| LED Indicators | Battery Status LED, AC Status LED |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 0% ~ 80%, Non-condensing |
| Storage Humidity | 0% ~ 95%, Non-condensing |
| Dimensions (W × H × D) | 340 × 500 × 80 mm |
| Weight | 2.6 kg (Battery Not Included) |
| Power Supply Model | PSC-160A-C |
| Power Supply Input | 110 ~ 240 VAC, 50/60 Hz |
| Power Supply Output | 13.8 VDC, 11.6 A, 160 W |
| Backup Battery | ES7-12 |
| Backup Battery Voltage | 12 VDC |
| Backup Battery Capacity | 7 Ah |
| Backup Battery Dimensions | 65 × 151 × 97.5 mm |
| Backup Battery Weight | 2.5 kg |
Related Products
Suprema BioEntry R2
Multi-RFID card reading
Field-proven fingerprint technology
Standardized communication
Advanced Fingerprint Recognition
More Details

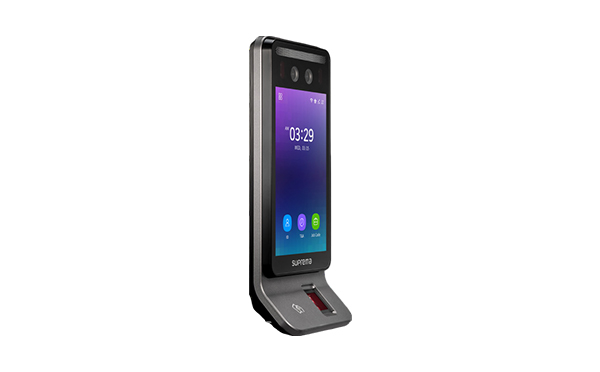

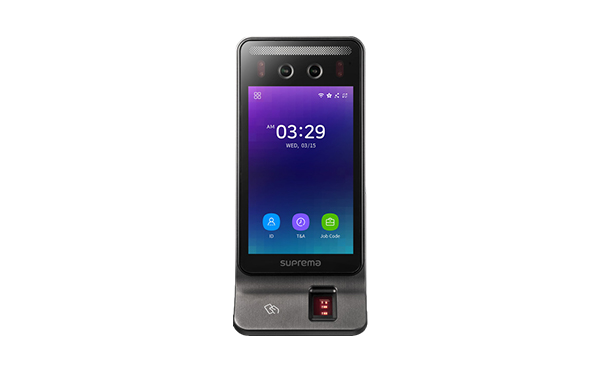

Suprema BioStation 3 Max
