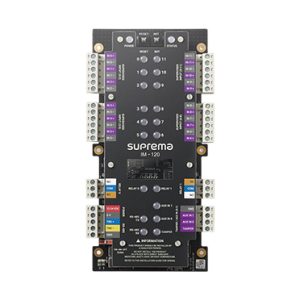

Suprema Input Module
- Supports up to 12 supervised input
- 1 dedicated tamper input for security monitoring
- Supports offline input-to-relay operation
- Up to 31 modules can connect to a master device
- Compatible with TTL or supervised input modes
- Simple dry-contact interface for external systems
- Description
- Specifications
Description
Input Module is a multiple input extension module which can control up to 12 supervised inputs, 2 AUX, 1 tamper switch and 2 relays. A total of 31 units can be connected to a master device via an RS485 daisy chain. It allows the use of inputs for interfacing with sensors or door contacts etc., as well as providing a simple ‘dry contact’ interface for other systems.
| Model Name | IM-120 |
|---|---|
| Max. Text Log | 10 ea per Port |
| CPU | Cortex M3 72 MHz |
| Memory | 512 KB Flash + 64 KB SRAM |
| LED | Multi-color |
| Input | 12 Channels (TTL Input or Supervised Input Selectable) |
| Relay | 2 Relays |
| Tamper | 1 Channel |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 0% ~ 95%, Non-condensing |
| Storage Humidity | 0% ~ 95%, Non-condensing |
| Weight | 203 g |
| Dimensions (W × H × D) | 90 × 190 × 21 mm |
| Power | 12 VDC, Max. 0.2 A |
| Certifications | CE, UKCA, KC, FCC, RCM, RoHS, REACH, WEEE |
