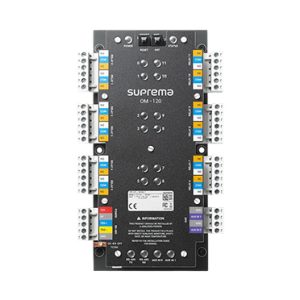

Suprema Output Module
- 12 output relays per unit
- Controls up to 192 floors per elevator
- Preset alarms in APB zones
- Elevator groups can be added to a certain fire alarm zone
- Terminating resistance for RS-485 connections
- Description
- Specifications
Description
The output module is a multiple-output extension module that can control up to 12 output relays. It can also be used as an elevator controller with the BioStar 2 system. A total of 31 units can be connected to a master device via an RS485 daisy chain. The output module also has an anti-passback feature and a fire alarm feature.
| Model Name | OM-120 |
|---|---|
| CPU | Cortex M3 72 MHz |
| Memory | Flash 128 KB, SRAM 20 KB |
| Display | Not Supported |
| LED | Multi-color |
| Sound | Not Supported |
| Communication Protocol | OSDP V2 Compliant |
| Ethernet | Not Supported |
| Wi-Fi | Not Supported |
| USB | Not Supported |
| Intercom | Not Supported |
| AUX Input | 2 Channels, Dry Contact Input |
| Tamper | Not Supported |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 0% ~ 90%, Non-condensing |
| Storage Humidity | 0% ~ 90%, Non-condensing |
| Weight | 300 g |
| Dimensions (W × H × D) | 90 × 190 × 21 mm |
| Power | 12 VDC |
| Certifications | CE, UKCA, KC, FCC, RoHS, REACH, WEEE |
