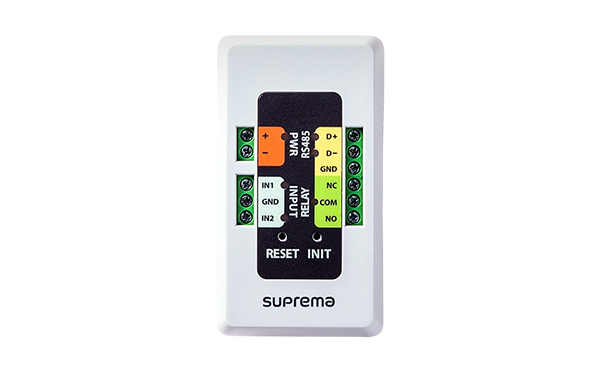

Suprema Secure Module
- Secure AES-128 encrypted communication
- Single-door I/O control
- OSDP V2 compliant
- Ultra compact design
- 1 relay and 2 input channels
- Multi-color LED status indicator
- Low power consumption
- Easy and flexible installation
- Reliable operation in demanding environments
- Description
- Specifications
Description
The Suprema Secure Module provides secure door control via encrypted communication when combined with other Suprema devices. Its ultra-compact form factor allows it to be installed and used in different environments.
| Model Name | SIO2 |
|---|---|
| CPU | Cortex M3 72 MHz |
| Memory | 128 KB Flash + 20 KB RAM |
| LED | Multi-Color |
| Input | 2 Channels |
| Relay | 1 Relay |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 0% ~ 80%, Non-condensing |
| Storage Humidity | 0% ~ 90%, Non-condensing |
| Weight | 37 g |
| Dimensions (W × H × D) | 36 × 65 × 18 mm |
| Power | 12 VDC, Max. 0.5 A |
| Certifications | CE, UKCA, KC, FCC, RoHS, REACH, WEEE, ETL |
