Suprema BioEntry P2
- Best-in-class Performance
- Compact IP Fingerprint Device
- Enterprise-level Capacity
- Multi-RFID Card Reading
- Versatile Interfaces
- Description
- Specifications
Description

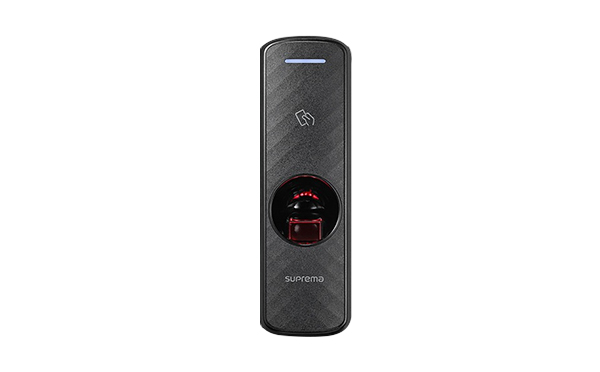

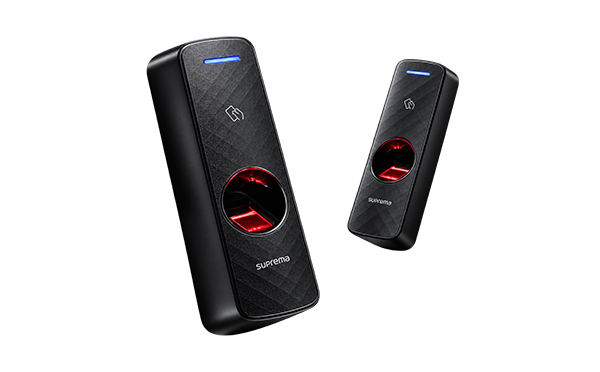

Suprema BioEntry P2 is a compact fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry P2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled with powerful 1.0GHz CPU. Packed in a mullion-type sleek design, BioEntry P2 also provides added flexibility in system design by featuring multi card reading with dual-frequency RFID technology. With its selection of communication interfaces and credential options, BioEntry P2 is a perfect IP access control solution for sites large or small.
| Biometric | Fingerprint |
|---|---|
| Sensor Type | Optical Sensor (OP6) |
| Template | SUPREMA / ISO 19794-2 / ANSI 378 |
| Extractor / Matcher | MINEX certified and compliant |
| CPU | 1.0 GHz |
| Memory | 8GB Flash + 64 MB RAM |
| Max. User (1:1) | 10,000 (Based on one finger enrollment per user) |
| Max. User (1:N) | 10,000 (Based on one finger enrollment per user) |
| Max. Finger per User | 10 |
| Max. Text Log | 1,000,000 (text) |
| LCD | Multi-Color |
| Sound | Multi-tone Buzzer |
| Ethernet | 10/100 Mbps, auto MDI/MDI-X |
| RS-485 | 1ch host or slave (selectable), OSDP V2.1.6 |
| Wiegand | 1ch input or output (selectable) |
| TTL | 2ch Input |
| Relay | 1 Relay |
| Tamper | Supported |
| Power | DC 12V |
| Dimensions (W × H × D) | 50 × 164 × 37.5 mm |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE |
Related Products
Suprema BioStation 3
Easy Communication Across All Access Points
The Highest Level of Privacy...
More Details

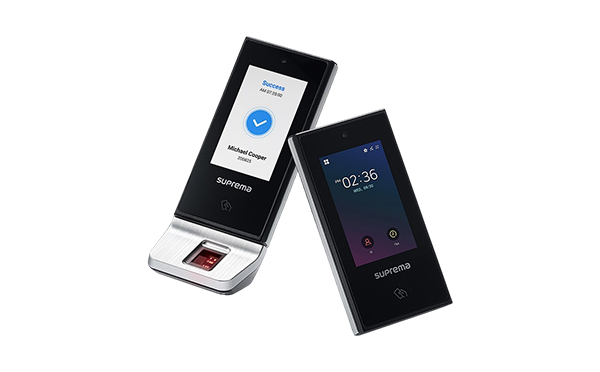

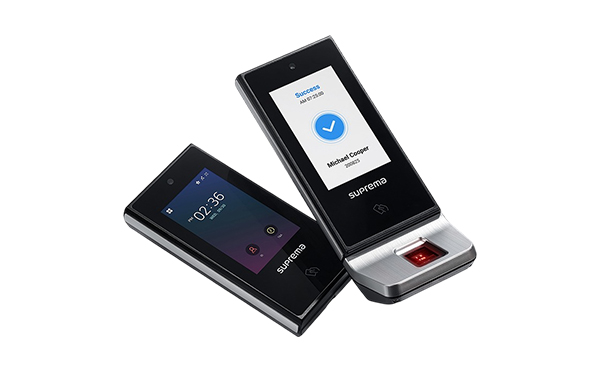

Suprema X Station 2
