Suprema X Station 2
- Flexible Multi-Credential identification
- Comprehensive RFID Card Compatibility
- Enhanced Security and Data Protection
- Designed for easy deployment and management
- World-renowned Fingerprint Recognition
- Improved Usability of Intuitive UI on Touchscreen
- Expanded Capacity for More Users and Security Logs
- Description
- Specifications
Description

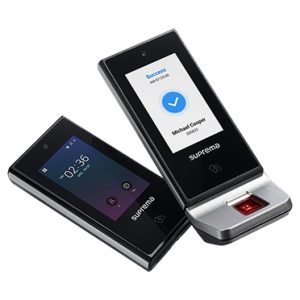

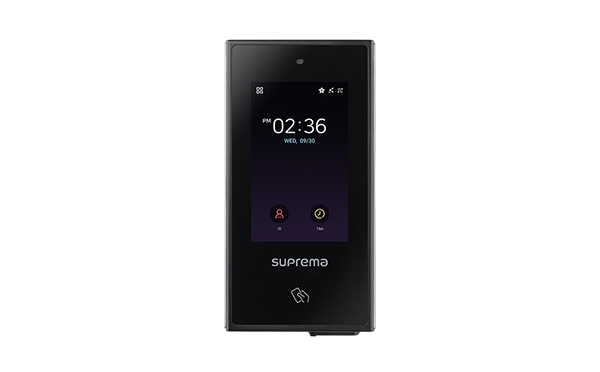

X-Station 2 is a versatile multi-technology terminal for access control and workforce management, built around broad RFID card compatibility and fast, accurate fingerprint authentication. For compatibility, it also reads QR codes and barcodes via the built-in camera and supports mobile access when needed. Security and operations are reinforced by secure boot, Open Supervised Device Protocol (OSDP) over RS-485, and image logs, while Power over Ethernet (PoE), a 4-inch capacitive touchscreen, and an IP65-rated design simplify installation.
| Model | X-Station 2 |
|---|---|
| CPU | 1.5 GHz Quad Core |
| Memory | 16 GB Flash + 1 GB RAM |
| Display | 4″ IPS Color LCD |
| Resolution | 480 × 800 pixels |
| Biometric | Fingerprint |
| RF Options | 125 kHz EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire, FeliCa |
| Mobile Access | NFC, BLE |
| Max. Users | 500,000 |
| Max. Text Log | 5,000,000 |
| Ethernet | 10/100 Mbps, Auto MDI/MDI-X |
| RS-485 | 1 Channel |
| Wiegand | 1 Channel |
| USB | USB 2.0 Host |
| PoE | IEEE 802.3af |
| Relay | 1 Relay |
| Tamper | Supported |
| IP Rating | IP65 |
| Operating Temperature | -20°C to 50°C |
| Power | 12 VDC / 24 VDC |
Related Products
Suprema Airfob Patch
Instant Mobile Upgrade
No Batteries Needed
Peel-and-Stick Setup
Universal OS Support
...
More Details
Suprema Enclosure
All-in-One Controller Enclosure
Power Status Monitoring
Wall-Mount Design
Durable ABS Construction
...
More Details

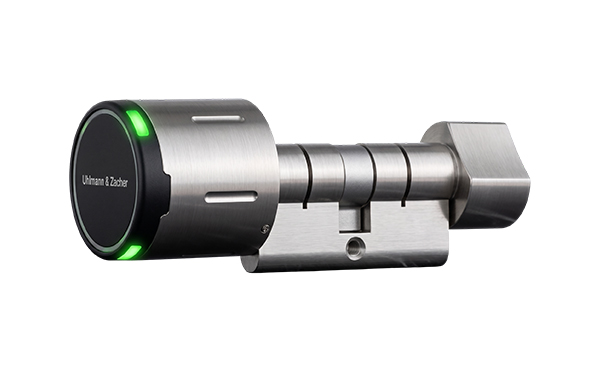

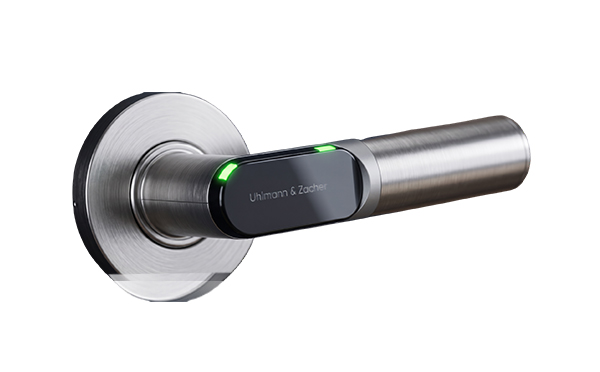

Suprema Wireless Door Locks
