Suprema XPass 2
- Mobile Access
- Industry standard communication via OSDP
- Multi-type hardware structure
- Enhanced security with the Secure Element
- IP67 – Water and Dust Resistant
- IK08 – Vandal Resistant
- Multi-card Reading
- Power over Ethernet
- Homing bump on keypad for the visually impaired
- Description
- Specifications
Description

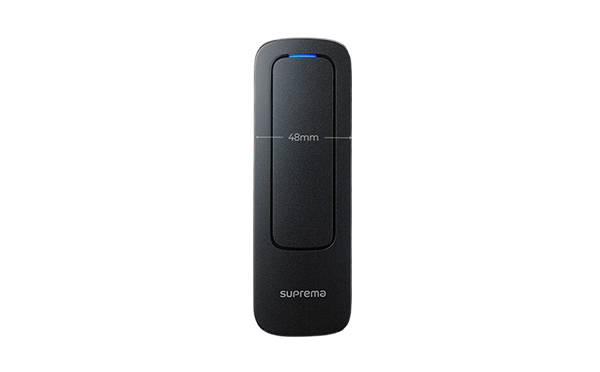

XPass 2 is an outdoor compact RFID device based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology, mullion-type, gangbox-type, and gangbox keypad-type are all supported, which provides perfect installation in various environments. XPass 2 also supports dual-frequency (125 kHz / 13.56 MHz) RFID technology and can read the mobile cards using NFC and BLE, the latest mobile communication technologies. Packed with rugged IP65/IP67-rated dust & waterproof performance as well as an IK08-rated vandal-proof structure, it is suitable for tough environments and outdoor installation.
| CPU | 1 GHz |
|---|---|
| Memory | 4GB Flash + 64MB RAM |
| RF Option | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa |
| Max. Users | 200,000 |
| Max. Text Logs | 1,000,000 |
| Mobile Card | NFC, BLE |
| Ingress Protection | IP65, IP67 |
| Vandal Proof | IK08 |
| PIN | Supported (Keypad 3×4) |
| Ethernet | Supported (10/100 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (Selectable) |
| Wiegand | 1ch In or Out |
| Dimensions (W × H × D) | 48 × 144.7 × 27 mm |
| Certificates | UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE |
