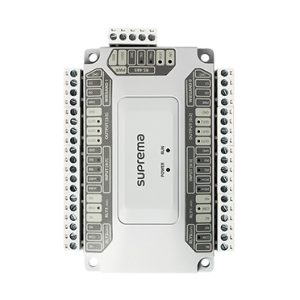

Suprema Door Module
- Secure data transmission with encrypted communication
- Control up to four doors through multiple inputs and output modules
- Easily monitor device status with 4 additional supervised inputs
- Implement centralized access control with a Suprema device
- Description
- Specifications
Description
Door Module provides secure door control of up to four doors via encrypted communication and also contains two wiegand reader interfaces for use with 3rd party readers. A wide variety of I/O interfaces allows Door Module to be a part of diverse system configurations.
| Model Name | DM-20 |
|---|---|
| CPU | Cortex M3 72 MHz |
| Memory | Flash 128 KB, SRAM 20 KB |
| LED | Multi-color |
| RS-485 | 1 Channel |
| Wiegand | 2 Channel Inputs |
| Input | 4 Channels |
| Tamper | Not Supported |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 0% ~ 80%, Non-condensing |
| Storage Humidity | 0% ~ 90%, Non-condensing |
| Weight | 220 g |
| Dimensions (W × H × D) | 130 × 90.5 × 35.8 mm |
| Power | 12 VDC, Max. 3.1 A |
| Certifications | CE, UKCA, KC, FCC, RoHS, REACH, WEEE |
