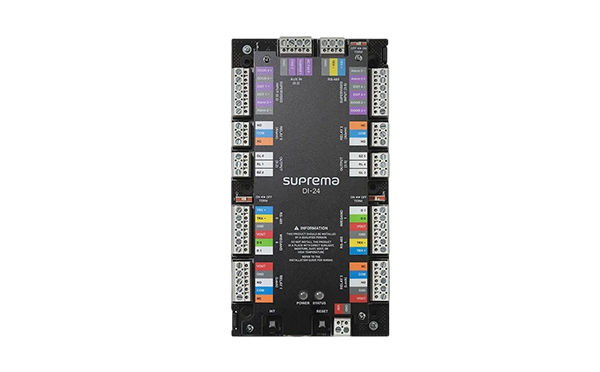

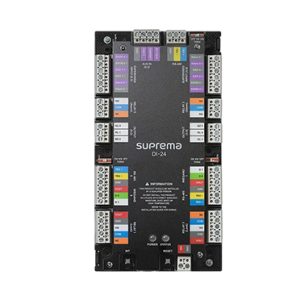

Suprema Door Interface DI-24
- Access that never stops
- Controls 2 doors, 4 readers
- Offline-capable operation
- Scalable up to 34 doors with RS-485 and Wiegand
- Fully compatible with CoreStation Series
- Reliable Door Expansion. Built for Scale
- Description
- Specifications
Description
Door Interface is a powerful 2-door, 4-reader interface designed for reliable access control—even offline. It connects easily to the CoreStation Series, enabling streamlined RS-485 communication and scalable door control with minimal wiring. DI-24 is a smart 2-door, 4-reader interface module that simplifies access control for large sites. It integrates seamlessly with CoreStation and scales easily to control more than 30 doors with minimal wiring.
| Model Name | DI-24 |
|---|---|
| Max. Text Log | 400 |
| CPU | 1.2 GHz Single Core |
| Memory | 4 GB Flash + 256 MB RAM |
| Crypto Chip | Supported |
| LED | RED Single-Color |
| RS-485 | 3 Channels |
| RS-485 Communication Protocol | OSDP V2 Compliant |
| Wiegand | 2 Channels |
| Input | 6 Channels |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 0% ~ 80%, Non-condensing |
| Storage Humidity | 0% ~ 95%, Non-condensing |
| Operational Ambient Conditions | 0°C ~ 49°C |
| Weight | 279 g |
| Dimensions (W × H × D) | 100 × 190 × 33.9 mm |
| Certifications | CE, UKCA, KC, FCC, RCM, IC, RoHS, REACH, WEEE, EAC |
