Tiso Bicyclone-L
- Combined turnstile and gate for pedestrian, bicycle & wheelchair access
- Fully welded or disassembled options for flexible transportation
- Low-noise operation
- Durable housing for high-traffic areas
- Low power consumption
- Compatible with various access control systems
- Wired remote control included
- Description
- Specifications
Description

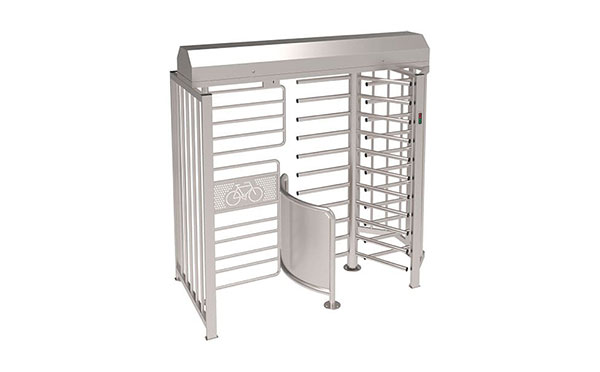

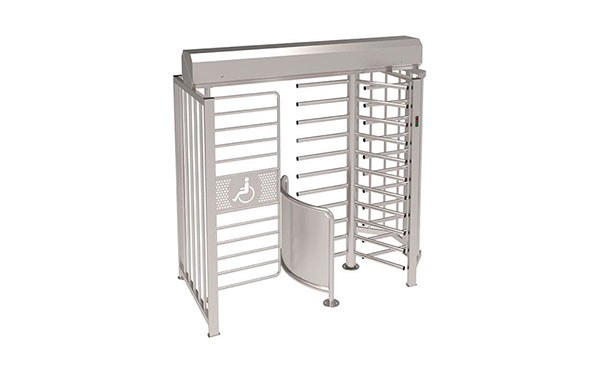

Bicyclone-L turnstile barrier gate designed as a combination of extended passage with regular single pedestrian entry point within one full-height turnstile. Extended passage ensures smooth entry of bicycles, wheelchairs, large-volume belongings and materials. Can be supplied both in fully welded or assembly (attractive for transportation) design.
| Model Name | Bicyclone-L 700 / Bicyclone-L 900 |
|---|---|
| Cabinet width | 2315 / 2515 mm |
| Cabinet length | 1170 mm |
| Rotor passage width | 620 mm |
| Gate passage width | 700 / 900 mm |
| Mechanism | Servo-drive (Triservo-M) |
| Blocking system | Two electromechanical stop catches |
| Emergency mode | Free pass in both directions |
| MCBF | 5,000,000 cycles |
| MTTR (per pass) | < 25 min |
| Maximum power consumption | 160 W |
