Tiso Slide
Category: Tiso Entrance Control Solutions
- BMDrive® BLDC motor for reliable, maintenance-free operation
- Smart self-diagnostic system for easy monitoring
- Digital force & speed control with safety sensors
- Sensors detect passengers with luggage and support free exit
- Available in 550 mm standard and 900 mm wide lanes
- Compatible with various access control systems
- Low power consumption
- Wired remote control included
- Description
- Specifications
Description

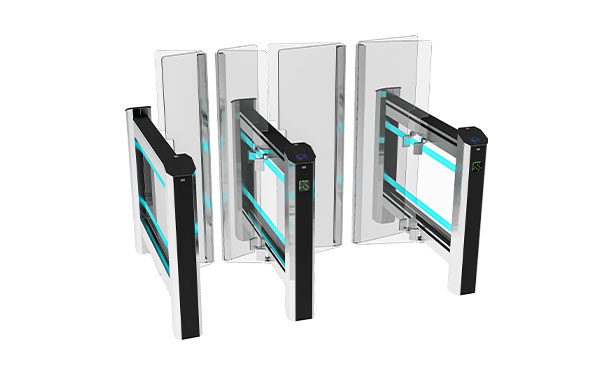

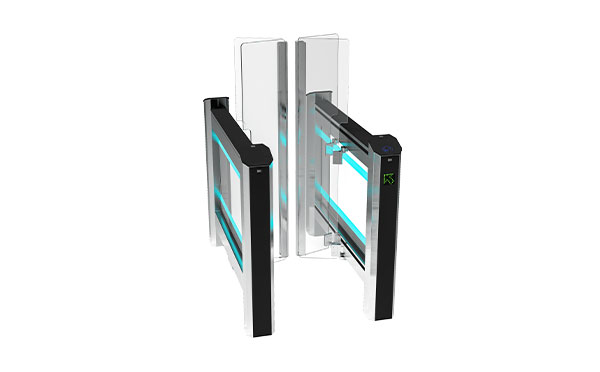

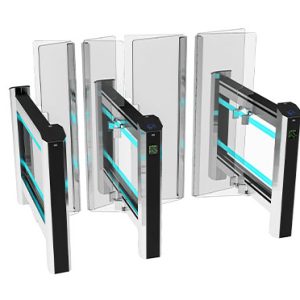

Slide speed gate with folding & sliding high leaves guarantees effective protection and is a stylish original solution for your site. This is a truly unique access point for the most advanced sites, where security should not compromise with appearance and style. Movement principle allows to keep narrow cabinet even for wide lane, and ensure safety for users. In the same time security features of the gate maintain proper protection of the site. Customization options allow the turnstile to blend-in seamlessly with the existing environment of lobbies of office centers, banks and other institutions.
| Model Name | Slide 550 / Slide 900 |
|---|---|
| Cabinet width | 154 mm |
| Cabinet length | 1435 mm |
| Cabinet height | 1050 mm |
| Leaves height | 850 / 1200 / 1500 / 1800 mm |
| Passage width | 550 / 900 mm |
| Opening/closing time | 0.7 / 1 sec |
| Mechanism | BMDrive® servodrive (BLDC) |
| Blocking system | FoldEmLock® |
| Emergency mode | Free entry/exit (leaves are opened automatically) |
| MCBF | 10,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 160 W |
Related Products
Tiso Entrance Control Solutions
More Details

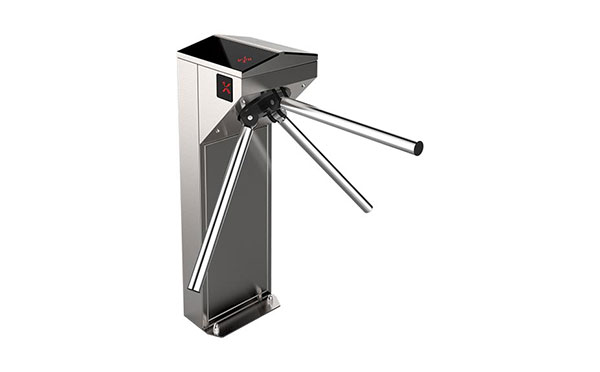

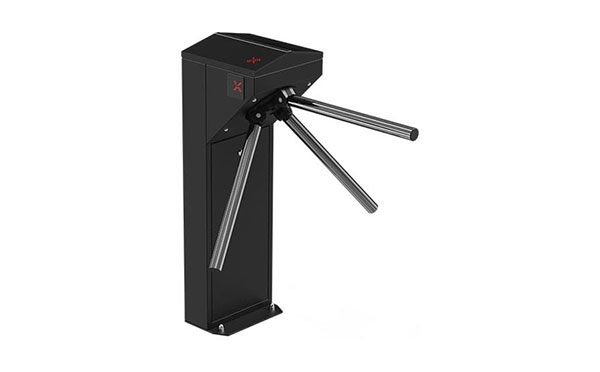

Tiso Centurion-М
