Tiso Speedblade

  • BMDrive® BLDC motor for reliable, maintenance-free operation
  • Smart self-diagnostic system
  • Digital force & speed control with safety sensors
  • Passenger and luggage detection sensors
  • 550 mm standard and 900 mm wide lane options
  • Compatible with various access control systems
  • Low power consumption
  • Wired remote control included

Description

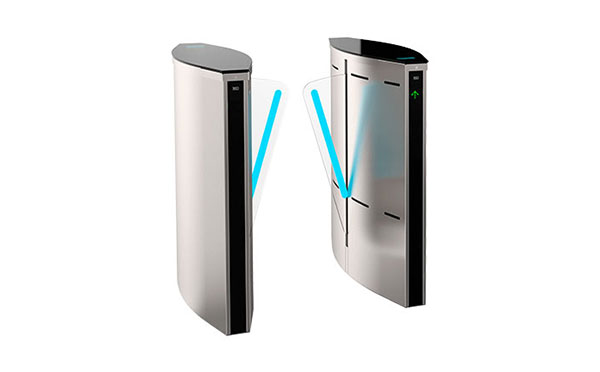

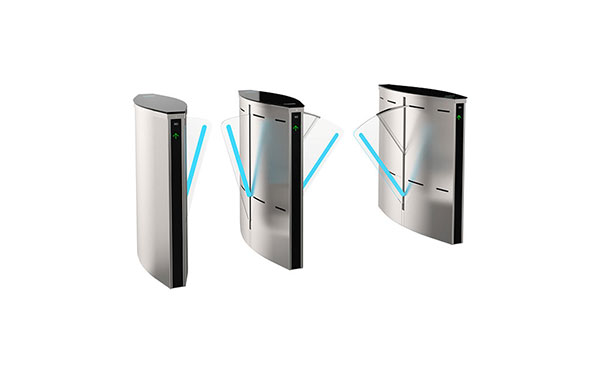

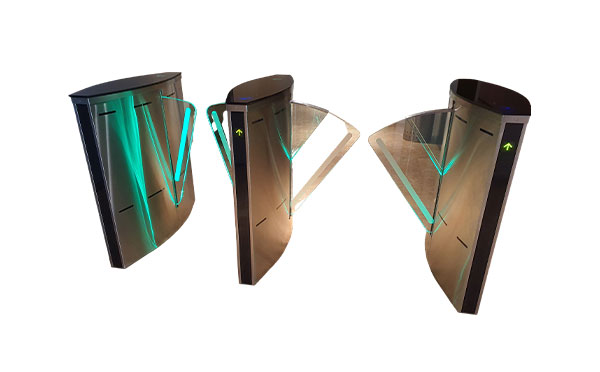

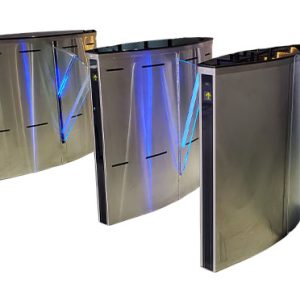

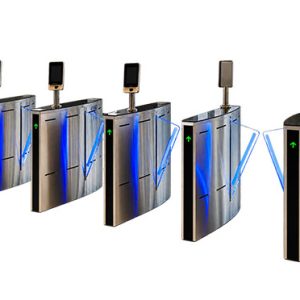

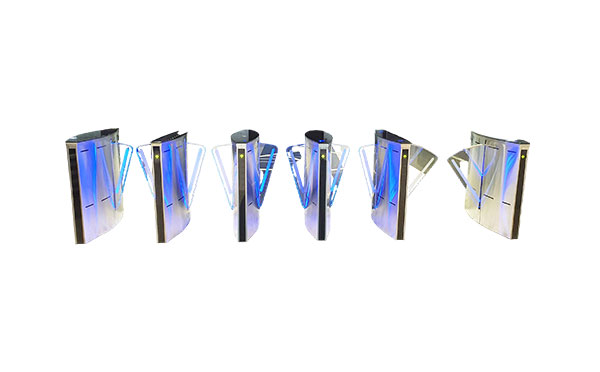

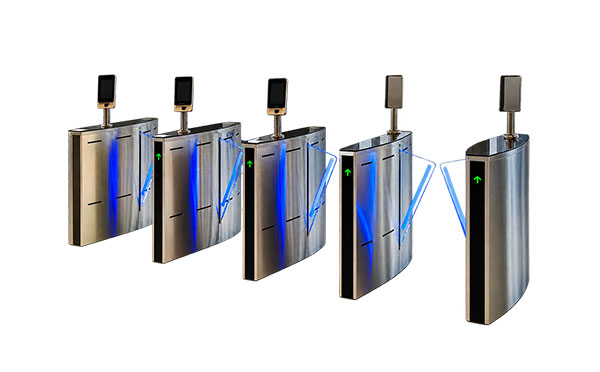

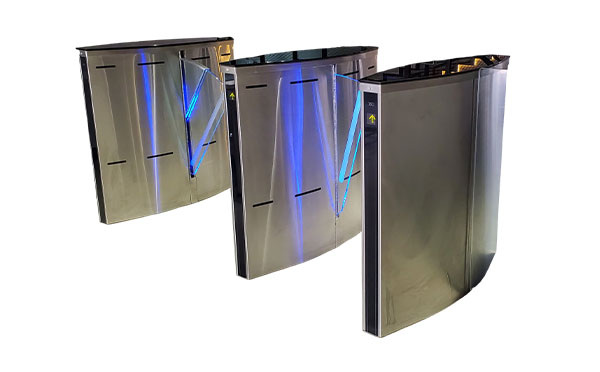

Speedblade is a type of motorized gate featured with retractable flaps operation principle. Housing materials and the lightweight cabinet’s shape make Speedblade speed gate universal for a large variety of facilities with heightened requirements for aesthetic equipment appearance. As well as other TiSO speedgates, Speedblade has implemented anti-tailgating and other safety and security functions. Normal and wide lanes for disabled people can be arranged through cabinets with the same sizes. Speed gates can be operated from a remote control panel or via access control system.





Model NameSpeedblade 550 / Speedblade 550
Cabinet width295 mm
Cabinet length1005 mm
Cabinet height1000 mm
Passage width550 / 900 mm
Opening/closing time0.5 / 0.8 sec
MechanismBMDrive® servodrive (BLDC)
Blocking systemDeadLock®
Emergency modeFree entry/exit (leaves are opened automatically)
MCBF10,000,000 cycles
MTTR< 25 min
Maximum power consumption160 W
