Tiso Sweeper
- BMDrive® BLDC motor for reliable, maintenance-free operation
- Digital force & speed control with safety sensors
- Passenger and luggage detection sensors
- Integrated LED lighting for access status and card readers
- 550 mm standard and 900 mm wide lane options
- Compatible with various access control systems
- Low power consumption
- Wired remote control included
- Description
- Specifications
Description

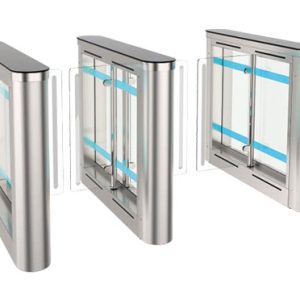

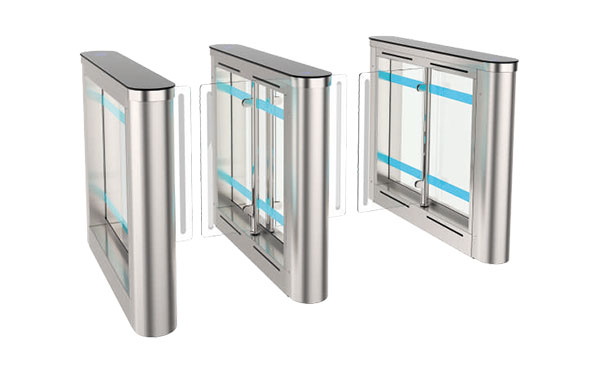

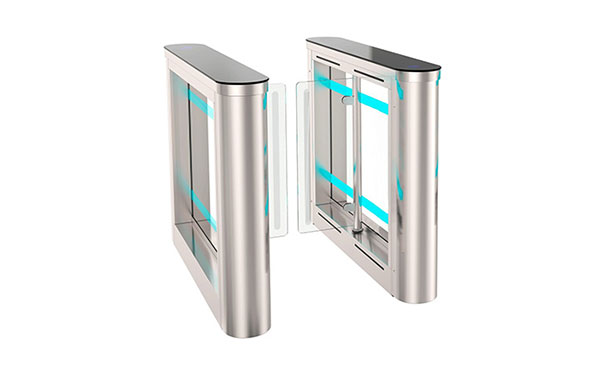

Sweeper speed gate is a perfect solution where contemporary aesthetics and functionality are required. The glass top and side panels provide a feeling of transparency and make it ideal for the most demanding building entrances. The swinging waist-high turnstile Sweeper can operate in two modes: normally closed and normally open. Both access directions are free when the turnstile is deenergized.
| Model Name | Sweeper 550 / Sweeper 900 |
|---|---|
| Cabinet width | 208 mm |
| Cabinet length | 1316 mm |
| Cabinet height | 1010 mm |
| Passage width | 550 / 900 mm |
| Opening/closing time | 0.3 / 0.6 sec |
| Mechanism | BMDrive® servodrive (BLDC) |
| Blocking system | ToothLock® |
| Emergency mode | Free entry/exit (leaves are opened automatically) |
| MCBF | 10,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 160 W |
