Tiso Sweeper-AL
- BMDrive® brushless motor for reliable, maintenance-free operation
- Smart self-diagnostic system with error logging
- Digital force & speed control with safety sensors
- Passenger and luggage detection
- Supports two access verification checkpoints
- Low power consumption
- Compatible with various access control systems
- Description
- Specifications
Description

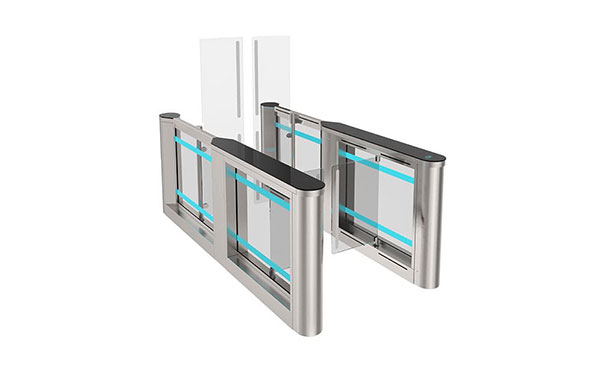

Sweeper AL – speed gate system based on Sweeper and Sweeper-HG models combination with swing type flaps and a reliable mechanism with a brushless motor. The construction of the system allows to arrange two checkpoints for access verification. Possibility of various biometric devices integration along with various glass height options at every checkpoint (overall height could be 1000-1800 mm) provide maximum security control during passage of people through the gate to protected area.
| Model Name | Sweeper-AL |
|---|---|
| Cabinet width | 208 mm |
| Cabinet length | 2663 mm |
| Cabinet height | 1010 mm |
| Leaves height | 1520/1800 mm |
| Passage width | 550 / 900 mm |
| Opening/closing time | 1.2 / 1.8 sec |
| Mechanism | Servo-driven (Motorized) |
| Emergency mode (fire alarm) | Free entry/exit (leaves are opened automatically) |
| Power fail | Fail-safe (gates could be opened manually—standard) |
| MTTR | < 25 min |
| Maximum power consumption | 310 W |
