Tiso Sweeper-HG

  • BMDrive® BLDC motor for reliable, maintenance-free operation
  • Smart self-diagnostic system
  • Digital force & speed control with safety sensors
  • Passenger and luggage detection
  • Compatible with access control systems
  • Low power consumption
  • Fail-safe manual opening during power failure

Description

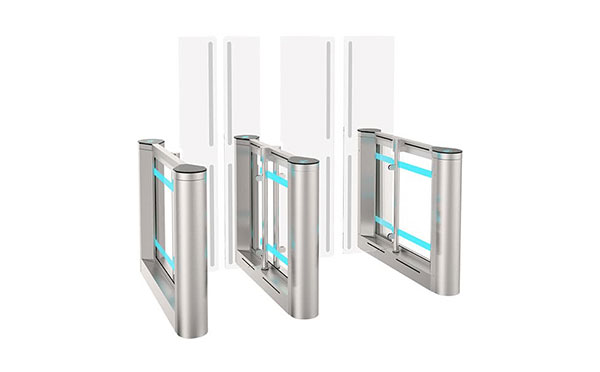

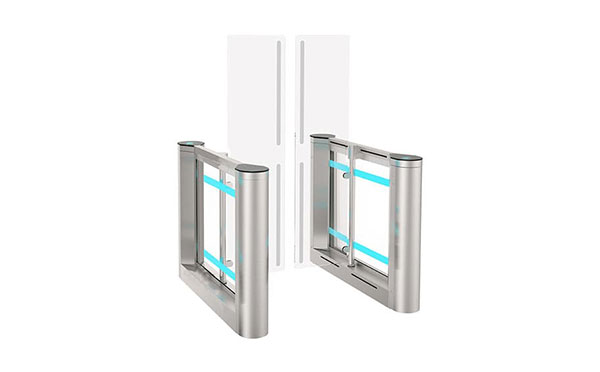

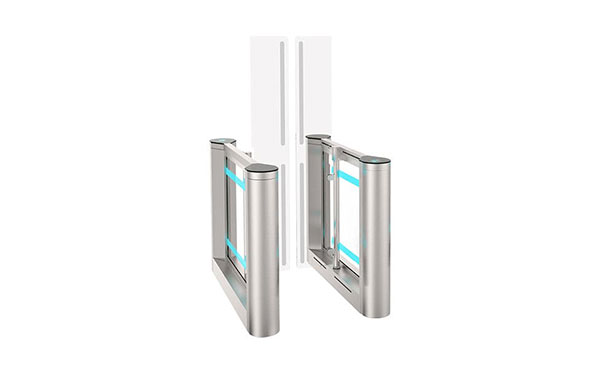

Sweeper-HG is a modification of the Sweeper speed gate, featuring tall glass blades that increase the overall height of the speed gate to 1800mm. The passage width can range from 550 to 900mm, offering flexibility to suit different requirements. This model of the speed gate is specifically designed for applications that demand a heightened level of security. The high swing glass blades effectively prevent the transfer of objects above the turnstile and deter any attempts to overjump it. The taller glass blades provide an added layer of protection, making it an ideal choice for environments that prioritize both security and aesthetics.





Model NameSweeper-HG 550 / Sweeper-HG 900
Cabinet width192 mm
Cabinet length1434 mm
Cabinet height1010 mm
Leaves height1500/1800 mm
Passage width550 / 900 mm
Opening/closing time0.7 / 0.9 sec
MechanismBMDrive® servodrive (BLDC)
Blocking systemToothLock®
Emergency mode (fire alarm)Free entry/exit (leaves are opened automatically)
Power failFail-safe (gates could be opened manually—standard)
MCBF10,000,000 cycles
MTTR< 25 min
Maximum power consumption160 W
