Tiso Sweeper-HGW
- BMDrive® BLDC motor for reliable, maintenance-free operation
- Digital force & speed control with safety sensors
- Passenger and luggage detection
- Compatible with access control systems
- Wired remote control included
- Low power consumption
- Fail-safe manual opening during power failure
- Description
- Specifications
Description

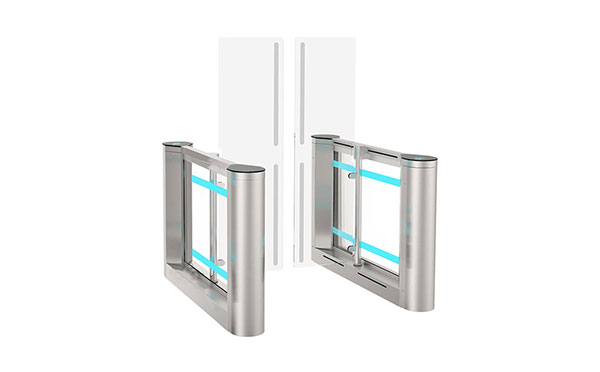

Sweeper-HGW is the ideal solution when you require a speed gate with both tall glass panels and an extra-wide passage. This model offers a passage width range of 550 to 1200mm, catering to diverse accessibility needs. The overall height of the speed gate is 1500mm, with the possibility of extension up to 1800mm. The Sweeper-HGW is specifically designed to address projects where standard DDA speed gates with a 900mm width fall short.
| Model Name | Sweeper-HGW 1200 |
|---|---|
| Cabinet width | 192 mm |
| Cabinet length | 1750 mm |
| Cabinet height | 1010 mm |
| Passage width | 1200 mm |
| Opening/closing time | 1.8 sec |
| Mechanism | BMDrive® servodrive (BLDC) |
| Blocking system | ToothLock® |
| Emergency mode (fire alarm) | Free entry/exit (leaves are opened automatically) |
| Power fail | Fail-safe (gates could be opened manually—standard) |
| MCBF | 5,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 160 W |
