Tiso Sweeper-S
- BMDrive® BLDC motor for reliable, maintenance-free operation
- Digital force & speed control with safety sensors
- Passenger and luggage detection
- Integrated LED lighting for access status
- 550 mm standard and 900 mm wide lane options
- Compatible with various access control systems
- Wired remote control included
- Low power consumption
- Description
- Specifications
Description

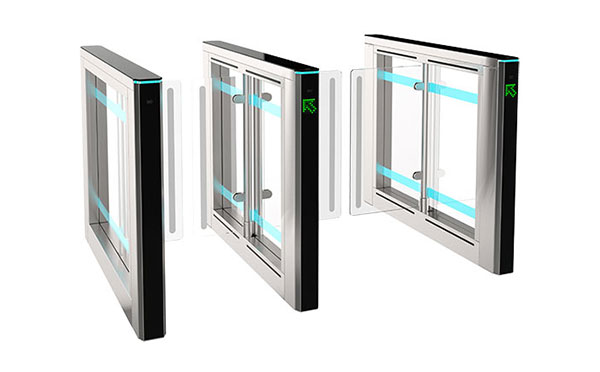

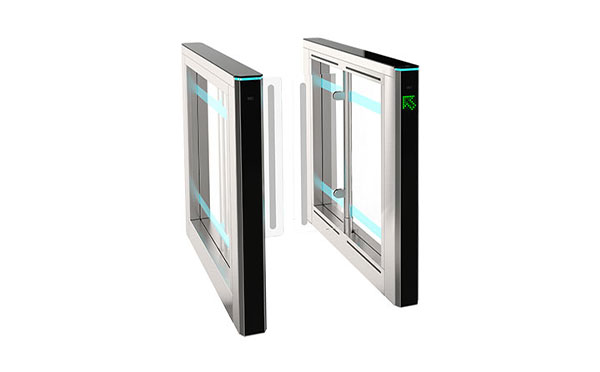

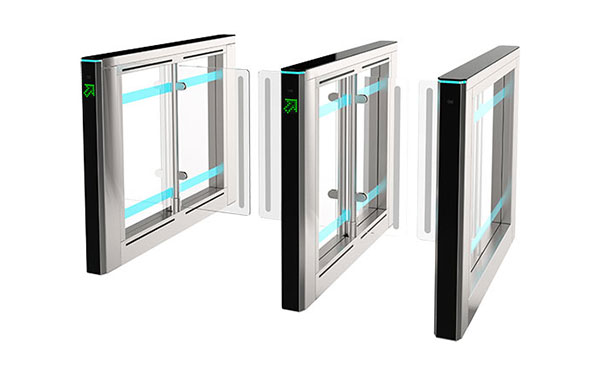

Sweeper-S combines together all advantages of the Sweeper model and new engineering solutions. Redesigned housing is huge advantage among other turnstiles in speed gates series. The width of one side housing is just 11 cm both for side, middle, normal and even wide lanes, which makes it the slimmest and the most sophisticated model on the security market. Sweeper-S model is the most appropriate choice for any modern building with the limited space environment and high aesthetic demands.
| Model Name | Sweeper-S 550 / Sweeper-S 1000 |
|---|---|
| Cabinet width | 110 mm |
| Cabinet length | 1337 mm |
| Cabinet height | 1013 mm |
| Passage width | 550 / 1000 mm |
| Opening/closing time | 0.1 / 1 sec |
| Mechanism | BMDrive® servodrive (BLDC) |
| Locking system | PinLock® |
| Emergency mode (fire alarm) | Free entry/exit (leaves are opened automatically) |
| Power fail | Fail-safe (gates could be opened manually—standard) |
| MCBF | 10,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 160 W |
