Tiso Sweeper-SH
Category: Tiso Entrance Control Solutions
- BMDrive® BLDC motor for reliable, maintenance-free operation
- ToothLock® locking system with HiSecurity & LowNoise modes
- Six safety sensors for secure passage
- AI-powered sensors detect tailgating, wrong-way & unauthorized entry
- Wide passage option for wheelchair & trolley access
- Passenger and luggage detection
- Ultra-slim 110 mm cabinet for space-saving installations
- Compatible with various access control systems
- Low power consumption
- Description
- Specifications
Description

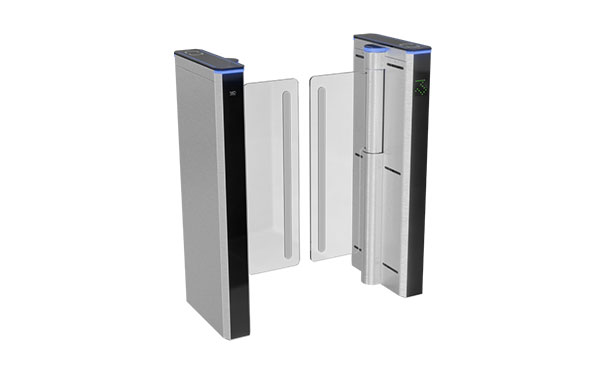

Sweeper-SH is slim, elegant design requires minimal space while providing the widest opening clearance for comfortable passage with wheelchairs, strollers, large boxes, or luggage. The model with full-height swing leaves ensures high security and long service life. Tempered glass guarantees safety and adds a modern, sophisticated look. Adjustable illumination and clear indication make the Sweeper-SH safe and convenient for users.
| Model Name | Sweeper-SH |
|---|---|
| Cabinet width | 110 mm |
| Cabinet length | 435 mm |
| Cabinet height | 1013 mm |
| Passage width | 550 / 900 mm |
| Opening/closing time | 0.6 / 0.8 sec |
| Mechanism | BMDrive® servodrive (BLDC) |
| Blocking system | ToothLock® |
| MCBF | 10,000,000 cycles |
| MTTR | < 25 min |
| Maximum power consumption | 160 W |
