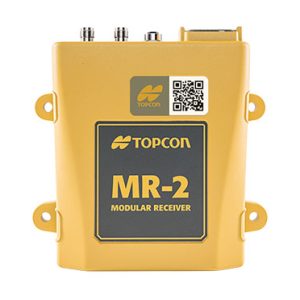

Topcon Mr-2
- 226 Universal Channel Vanguard Technology
- Simultaneous RTK positioning and heading determination
- Serial, USB, CAN and ethernet connectivity
- Integrated web interface for remote management
- 8 GB internal memory
- Description
- Specifications
Description
Whether needing a modular mobile RTK base station, a receiver for marine navigation, or a positioning device for mobile mapping, the MR-2 by Topcon is your versatile solution. It is built for harsh environments, offering IP67 dust and water protection as well as a superior level of vibration and shock tolerance (MIL spec). Flexible communication interfaces make it easy to integrate into a myriad of applications.
Tracking every available signal from all the current and planned constellations is made possible by Topcon’s patented Universal Tracking Channel technology, thus ensuring that your investment is secure for today and into the future. Dual antenna input support enables precision heading determination (and inclination) using Topcon HD2 technology alongside high-precision real-time kinematic positioning.
| Number of Channels | 226 channels with universal tracking |
|---|---|
| Antenna connector | 2x TNC (Antenna power 4.75-5.10 VDC) |
| Internal | Up to 8GB for each B125 board |
| Antenna connector | 2x TNC (VDC at 0-100 mA) |
| LED Grade Indicators | Power, Ethernet, Primary Antenna, Secondary Antenna |
| Operating Temperature | -40º C to 75º C |
| Storage Temperature | -50º C to 85º C |
| Enclosure | Aluminum alloy |
| Waterproof | IPX7 (1 meter submersion) |
| Dust/Water Protection | IP6X (fully dustproof) |
| Humidity | 100% condensing per Msp-PDA-012 class B, ref. MRII-143 |
| Input Voltage | 9 to 36 VDC. Reverse Polarity Protected |
| Dimensions (w x d x h) | 172 (w) x 166 (d) x 49 (h) |
| Weight | 0.95 kg |
