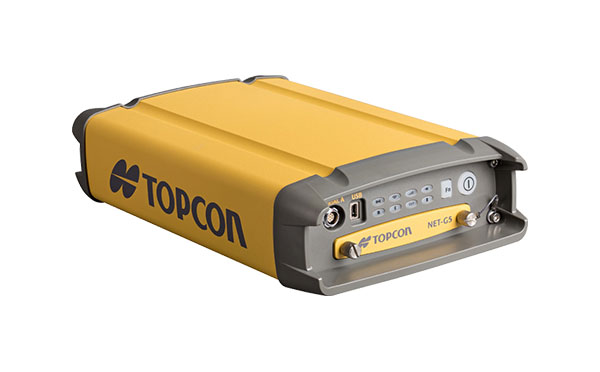

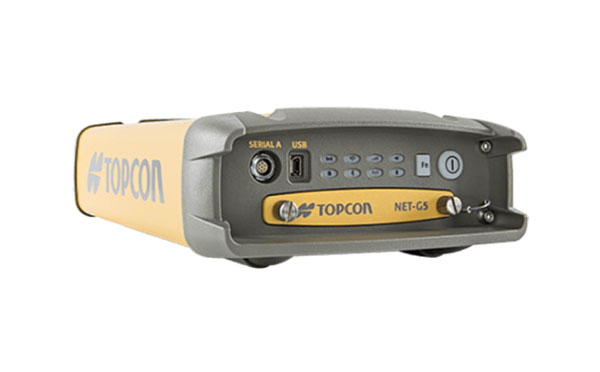

Topcon Net G5
- Efficient signal tracking across the entire GNSS spectrum
- 452 Universal Tracking Channel™ Technology
- Built-in Bluetooth® and Wi-Fi™ connectivity
- Integrated web interface for remote management
- Up to 32GB internal memory
- Description
- Specifications
Description
The NET-G5 uses Topcon’s premium Vanguard and Universal Tracking Channel technologies, incorporating 452 channels capable of tracking multi-frequency signals from all GNSS constellations, including GPS, GLONASS, SBAS, QZSS, Galileo, and BeiDou. This includes current and modernized signals across the full GNSS spectrum, including multiple L-band signals. The integrated Vanguard Technology™ has also demonstrated successful tracking and demodulation of advanced QZSS signal structures such as the LEX signal in E6.
The NET-G5 receiver can be accessed via Ethernet, Wi-Fi, or Bluetooth as well as by using standard serial or USB connections. The NET-G5 can serve as a USB host and provides a web-based user interface offering flexible configuration options and portability. The USB host allows the user to connect a USB memory stick or USB mass storage device (UMS) to the NET-G5 receiver.
| Number of Channels | 226 with Topcon’s patented Universal Tracking Channels™ technology. |
|---|---|
| Signals Tracked | GPS, GLONASS, QZSS, SBAS, Galileo, L-Band, and BeiDou (BDS) |
| Antenna Type | External – Geodetic full wave CR-G5 or PN-A5 antenna |
| I/O Communications | Class 2 Bluetooth® v2.0 + EDR |
| Memory/Data Storage | Removable SD/SDHC memory card up to 32 GB and USB Host support for external USB mass storage devices |
| Data Update/Output Rate | 1 Hz – 100 Hz selectable |
| Data Output Format | TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+, BINEX, RINEX |
| Web User Interface | Secure device access and configuration via Ethernet and Wi-Fi connectivity |
| Weight | Less than 2 kg |
| Operating Temperature | -40°C to 80°C |
| Dust/Water Protection | IP67 |
| External Power Input | Nominal 12 VDC (external power input range: 9 to 28 VDC) |
| Dimensions (w x d x h) | 150 x 200 x 60 mm |
Related Products

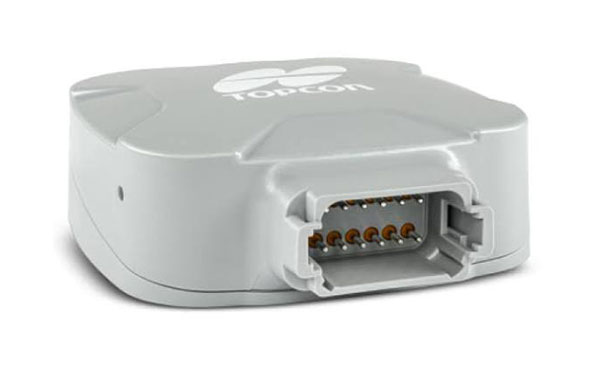

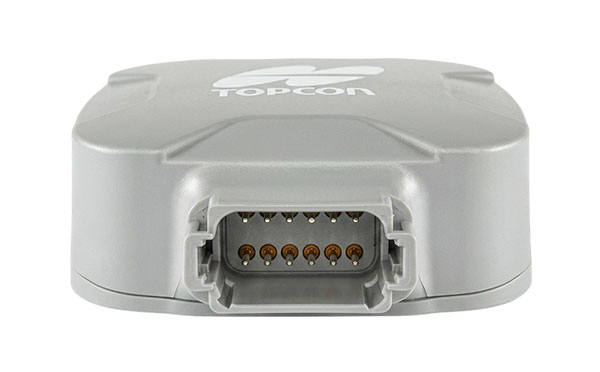

Topcon AGM-1
More Details

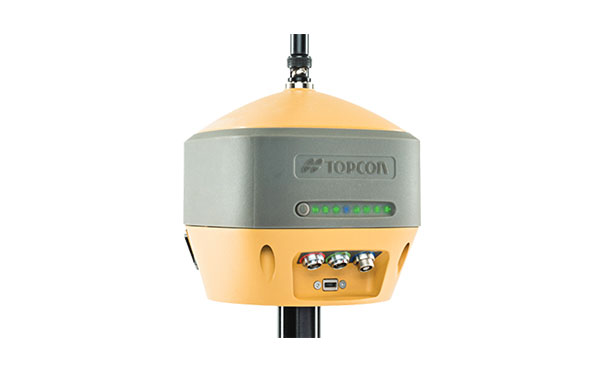

Topcon HiPer HR
More Details

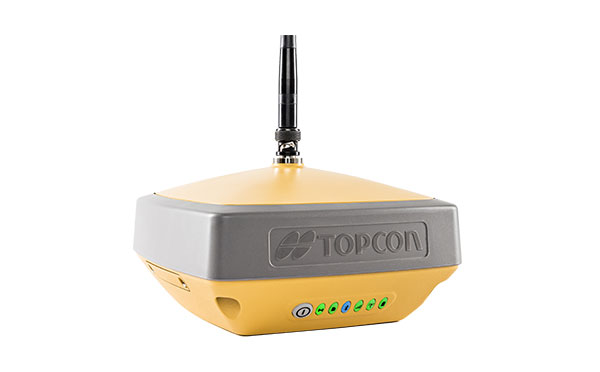

Topcon HiPer VR
More Details

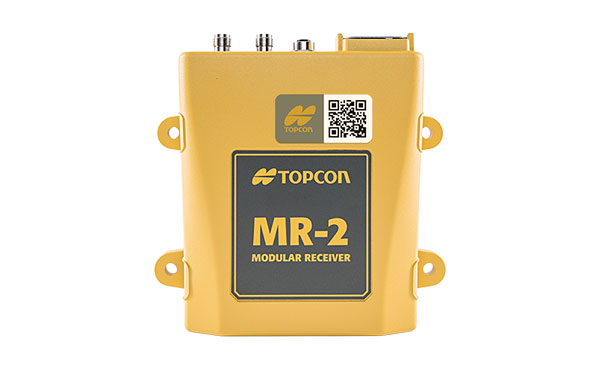

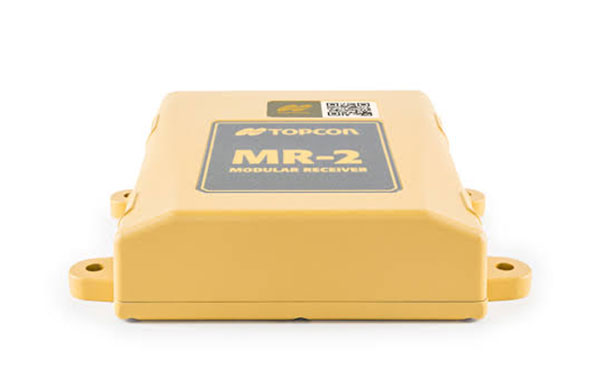

Topcon Mr-2
