Xperix RealScan SG10
- Portability with an ultra-compact design
- Plug & Play
- Flexibility in Hardware Design
- Ease of Integration
- Faster Data Transfer with USB 3.2 Gen1
- Simplified Development with SDK
- Support complex and data-intensive applications
- Enhanced Security
- Fraud prevention with PAD level 1 & 2 standards.
- Description
- Specifications
Description

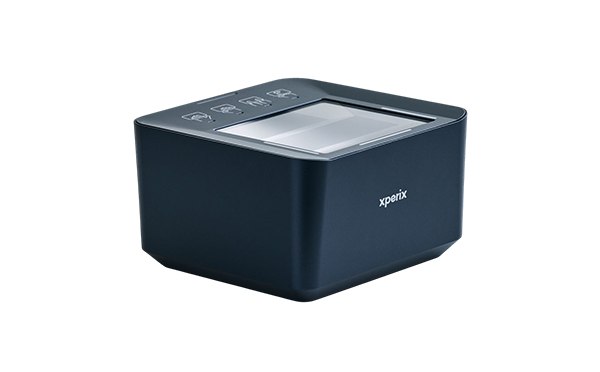

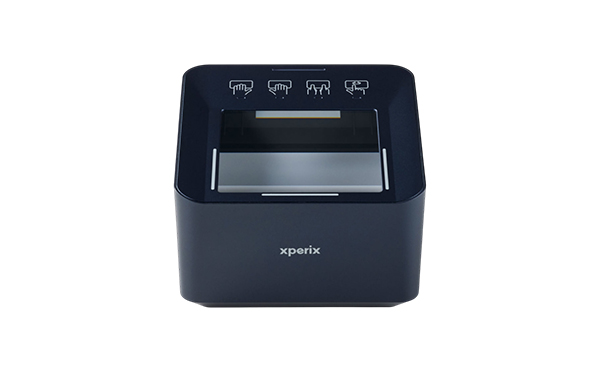

RealScan SG10 is an FBI Appendix F certified, FAP 60, ultra-compact optical live scanner that has been completely redesigned from a legacy optical live scanner.
With its new interface, USB 3.2 Gen 1 enables superior capture speeds and supports plug-and-play functionality. Xperix’s AI-based algorithms and optical technology ensure high-quality fingerprint image acquisition and advanced liveness detection that comply with PAD Level 1 & 2 standards.
With its reliability and durability, RealScan SG10 is a perfect live scanner for mobile enrollment kits, kiosks, and eGate, providing a significant advantage for customers to maximize the benefit from their product and solution.
| Capture | Flat (four/two/single) and rolled (single) fingers |
|---|---|
| Sensor Type | Optical |
| Image Size (WxL) | Four-finger slap: 1600 x 1500 pixels, two-finger flat |
| Resolution | 500 dpi |
| Image Grayscale | 8-bit, 256 Levels |
| Template Format | Xperix, ISO 19794-2, ANSI 378 by Image SDK |
| Supported Image Formats | RAW, BMP, WSQ, JPEG2000, ISO 19794-4 |
| Encryption | AES-256 by Image SDK |
| Weight | 1350 g |
| Platen Size (WxL) | 89 mm x 80 mm |
| Operating Temperature | -10ºC – 55ºC |
| Power Source | USB Host |
| Plug & Play | Supported |
| LED Indicator | Supported |
| Sound | Speaker |
| Certification | FBI, CE, FCC, KC, RoHS, USB-IF, WEEE, REACH, WHQL, UL, IEC 62471, ISO/IEC 30107-3 |
Related Products

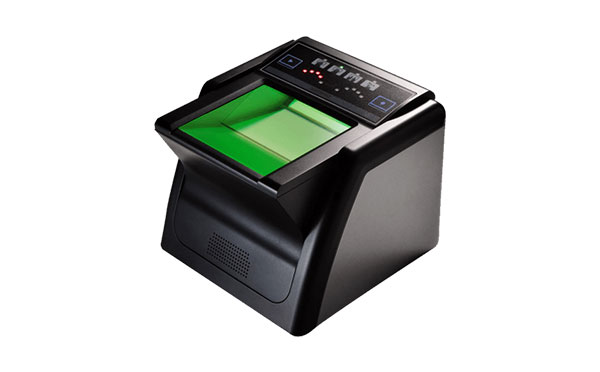

Xperix RealScan G10
