Zkteco BGM500
- Highly energy-efficient because of the DC brushless motor
- Digital control mainboard with diverse configuration possibilities
- The barrier arm will rebound when an obstacle detected
- Reversible boom direction
- Chassis with LED indicator
- Manual rise and fall in case of absence of power
- Support the boom breakaway design
- Various barrier arm
- Description
- Specifications
Description
BGM500 series parking barrier adopts streamlined appearance style design, built-in LED indicator; Integrated brushless DC motor gear box all-in-one transmission mechanism and intelligent ZKBarrier mainboard, MCBF can reach 3 million maintenance free. Apply to schools, communities, factories, office buildings and so on.
| Motor Type | DC 24V brushless motor |
|---|---|
| Output Power | 160W |
| Output Current | 10A |
| Operating Voltages | DC 24V |
| Power Supply | AC 220V/110V, 50Hz to 60Hz |
| MCBF | 3 million times |
| Remote Control Distance | ≥30m |
| Operating Temperature | -30°C to 75°C |
| Protection Level | IP54 |
| Chassis Dimensions (mm) | 350*302 *1020mm |
| Net Weight (excluding the barrier arm) | 43kg |
Related Products

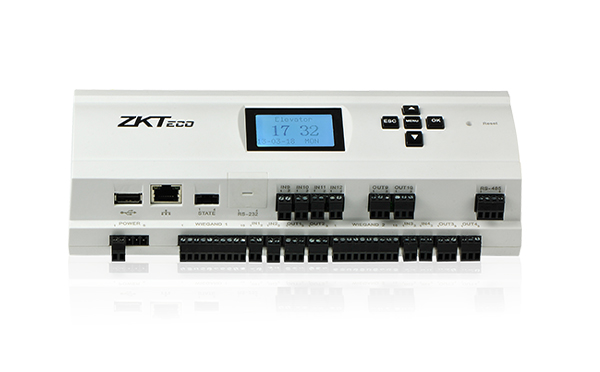

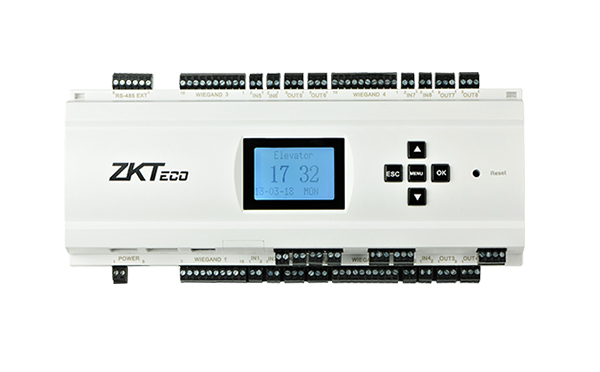

Zkteco EC10
Designed specifically for elevator control, providing a secured, scalable, versatile, and...
More Details

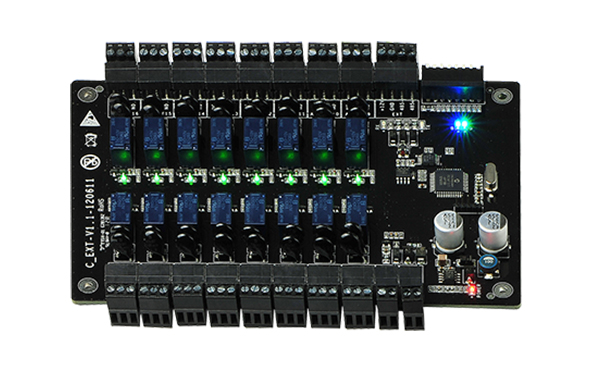

Zkteco EX16
Provides 16 floor button control relays to expand access control capacity
...
More Details
Zkteco FBL220 Series
Barriers retract automatically during emergencies
Barriers retract automatically during power outage...
More Details

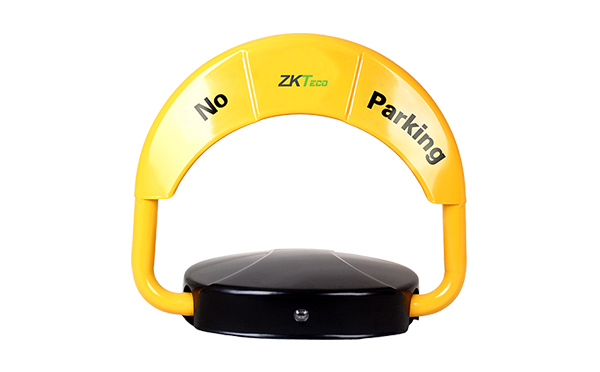

Zkteco Plock 1
