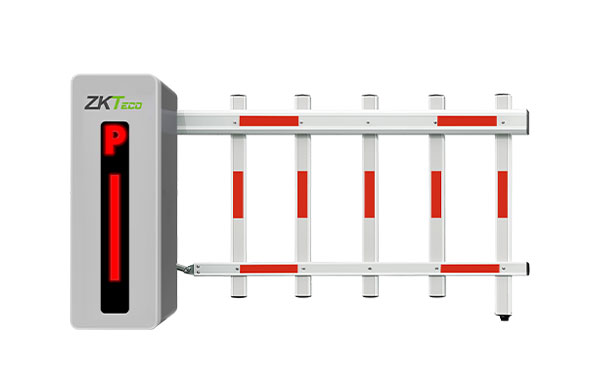

Zkteco BGM545R
- Highly energy-efficient because of the DC brushless motor
- Digital control mainboard with diverse configuration possibilities
- The barrier arm will rebound when an obstacle detected
- Chassis with LED indicator
- Manual rise and fall in case of absence of power
- Reversible boom direction
- Support the boom breakaway design
- Swing out prevents damage to the vehicle and product’s body
- Various barrier arm
- Description
- Specifications
Description
BGM500 series parking barrier adopts streamlined appearance style design, built-in LED indicator; Integrated brushless DC motor gear box all-in-one transmission mechanism and intelligent ZKBarrier mainboard, MCBF can reach 3 million maintenance free. Apply to schools, communities, factories, office buildings and so on.
| Motor Type | DC 24V brushless motor |
|---|---|
| Output Power | 160W |
| Output Current | 10A |
| Operating Voltages | DC 24V |
| Power Supply | AC 220V/110V, 50Hz to 60Hz |
| MCBF | 3 million times |
| Remote Control Distance | ≥30m |
| Operating Temperature | -30°C to 75°C |
| Protection Level | IP54 |
| Chassis Dimensions (mm) | 350*302*1020mm |
| Net Weight (excluding the barrier arm) | 43kg |
