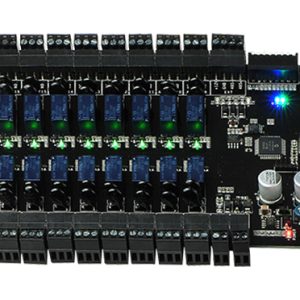

Zkteco EX16
- Provides 16 floor button control relays to expand access control capacity
- Connects to the EC10 panel using RS485 communication with DIP switch addressing
- Enables expansion up to 58 floors when 3 units are paired with an EC10 panel
- Operates on a 12V DC 1A power supply with a compact 160mm x 106mm footprint
- Description
- Specifications
Description
The EX16 is an elevator floor extension board featuring 16 floor button control relays designed to scale up access control capabilities. Communicating via RS485 with DIP switch address configuration, each EX16 unit operates on a 12V DC 1A power supply, and up to three EX16 boards can connect to a single EC10 panel to manage up to 58 total floors.
| Floor Button Control Relay | 16 |
|---|---|
| Communication to EC10 | RS485 |
| RS485 address | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimension (L×D×H) | 160mm×106mm |
| Net weight | 0.2Kg |
