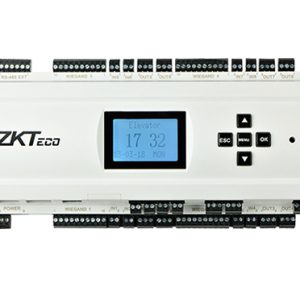

Zkteco EC10
- Designed specifically for elevator control, providing a secured, scalable, versatile, and affordable access control solution
- Restricts floor access based on fingerprint, proximity card, and/or password credentials
- Supports pre-defined time schedules and Passage Mode for unrestricted access during business hours
- Controls 10 floors natively and scales up to 58 floors using up to 3 EX16 extension boards
- Allows daisy-chaining multiple EC10 panels to control an unlimited number of floors
- Stores up to 3,000 fingerprints, 30,000 RFID cards, and 100,000 event logs
- Connects via TCP/IP or RS485 communication and offers SDK availability for custom software integration
- Description
- Specifications
Description
The ZKTeco EC10 is an elevator control panel designed to provide secure, scalable, and versatile access control for up to 10 floors directly through integrated relay outputs. Capable of restricting floor access based on user credentials—including fingerprint, proximity card, or password—it features a capacity for 3,000 fingerprint templates, 30,000 RFID cards, and 100,000 event logs. For expanded vertical access, the EC10 supports up to three EX16 floor extension boards via RS485 to manage up to 58 floors per unit, and multiple EC10 panels can be daisy-chained together for unlimited floor expansion. Communicating with PCs over TCP/IP and RS485, the panel supports customized time schedules, passage mode during business hours, and full system integration via an available SDK.
| Floor Button Control Relay | 10 |
|---|---|
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30,000 |
| Event Capacity | 100,000 |
| Power Supply | 12V DC 1A |
| Communication to PC | TCP/IP, RS485* |
| Communication to EX16 | RS485 |
| Dimension(L×D×H) | 242mm × 95mm × 60mm |
| Net weight | 0.8Kg |
