Zkteco CMP200
- Better experience with auxiliary traffic lights in the main body
- Support anti-smash and automatic closing with an infrared detector, loop detector, radar detector
- Arm direction can be exchanged between leftward and rightward according to site application
- Opening and closing angle of 90° ±2°
- Over voltage protection
- Support LPR, UHF reader controller and other devices for recognition and other A&C functions
- Description
- Specifications
Description

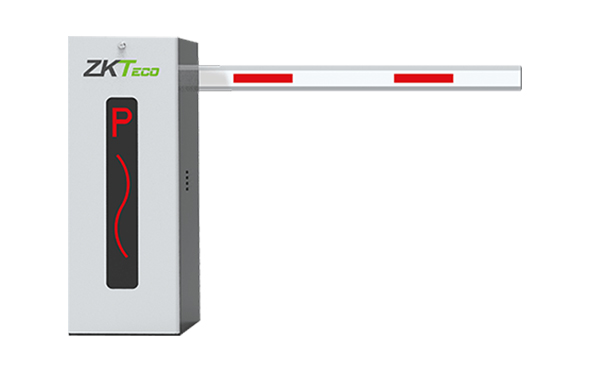

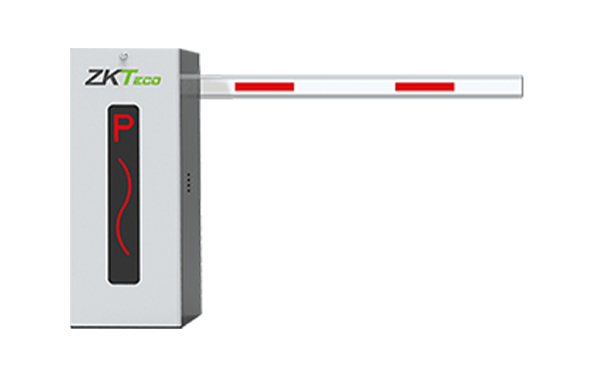

The CMP200 series offers brand-new automatic barrier gates equipped with telescopic boom arm that allows direction exchanging according to site application and a silvery housing with built-in LED indicating the state of the parking barrier, providing humanized user experience. Its appearance and structure are designed based on the feedback and needs of the market and industry. Comparing with other barrier gates, the CMP200 series of automatic barrier gate products with telescopic straight boom might be an economic good fit meeting demands in different parking lots.
| Gate Opening / Closing Time | 3s (max. 4.5m), 6s (max. 6m) |
|---|---|
| Supply Voltage | AC110V/220V, 50/60Hz |
| Power Consumption | 100W (max. 120W) |
| Remote Controlling Distance | ≤30m |
| Remote Controlling Frequency | 430MHz |
| Cabinet Material | Cold rolled steel |
| Boom Material | Aluminum and wood |
| Motor MCBF | 1 million times |
| Working Temperature Range | -25°C ~ +75°C |
| Working Humidity Range | ≤90% |
| Housing Dimensions (D*W*H) | 350 * 281 * 1000 (mm) |
| Packing Dimensions (D*W*H) | 420 * 405 * 1100 (mm) |
| Net Weight | 45 kg |
