Zkteco F35
- In-glass fingerprint verification
- Aluminium alloy frame and 2.5D glass panel
- Support SIP Client (Ver2.0) for one-way video intercom
- Fully compatible with ZKTeco SIP Video intercom indoor monitor (VT07-B01and VT07- B01-W)
- Attained IP65 protection rating with dustproof and waterproof
- Communication: TCP/IP and Wi-Fi (Optional)
- Support video talk via mobile app: ZSmart
- Multiple Verification Methods: Fingerprint / Card / Password
- Support AC push and convert to TA push
- Support Doorbell and Wireless Doorbell (Optional)
- Description
- Specifications
Description

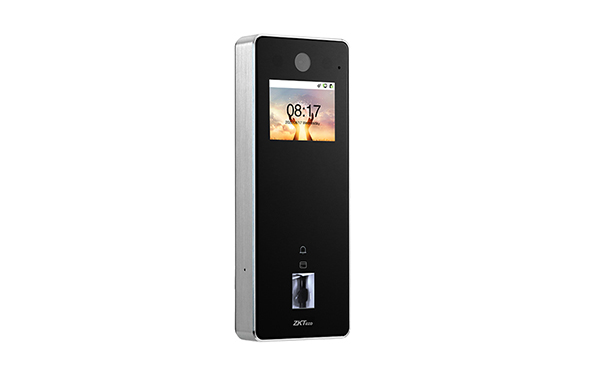

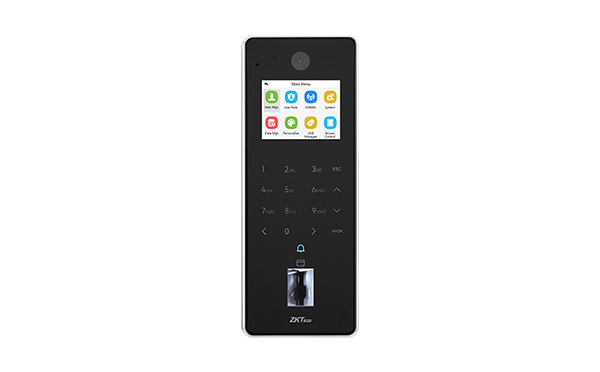

The ZKTeco F35 is a standalone access control and time-attendance terminal featuring in-glass fingerprint verification, a 2.4-inch color display, and a 2MP camera housed in an IP65-rated aluminum alloy frame with 2.5D glass. It supports one-way video intercom via SIP (ver 2.0) protocol, ONVIF compliance, and mobile interaction through the ZSmart app, alongside multiple authentication options including fingerprint, cards, and passwords. Built with an onboard capacity of 10,000 users, 10,000 fingerprint templates, and 500,000 transaction logs, it delivers fast biometric recognition in under 0.3 seconds and offers flexible connectivity via TCP/IP and optional Wi-Fi.
| Model | F35 |
|---|---|
| Display | 2.4″@ TFT Color LCD Screen (720*1280) |
| Camera | Camera @ 2MP |
| Field of View | Diagonal: 145°, Horizontal: 118°, Vertical: 62° |
| Operation System | Linux |
| Authentication method | Fingerprint / Card / Password (Physical Touch Keypad ) |
| User Capacity | 10,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Fingerprint Template Capacity | 10,000 (1:N) |
| Transaction Capacity | 500,000 |
| Max. User Password Length | 6 to 8 Digits |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5℃ to 55℃ (23 ℉ to 131 ℉ ) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 195 mm*75 mm*25.35 mm (L*W*H) |
| Net Weight | 0.52 Kg |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
