Zkteco FBL700
- SUS304 stainless steel casework ensure long-lasting durability
- High quality electrical components
- Barriers retract automatically during emergencies
- Barriers retract automatically during power outage with battery installed
- All smooth finish. No exposed screws
- Ergonomic design makes card and fingerprint. authentication fast & simple for users
- FBL700 series ships already integrated with our customers’ preference for either card or fingerprint access
- control reader. This greatly reduces installation time & expense
- FBL700 series and associated access control readers are all factory-tested prior to shipping
- ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry
- Description
- Specifications
Description

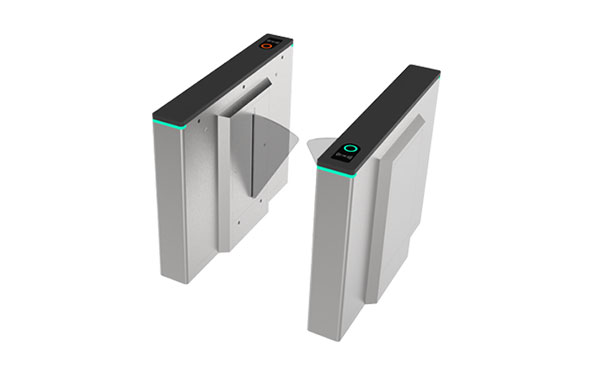

The ZKTeco FBL700 Series is an elegant, single-lane flap barrier turnstile system engineered for high-traffic indoor and outdoor entrance control. Constructed with a SUS304 stainless steel cabinet, black SPCC lid, and acrylic retracting barriers, it operates quietly (<30 dB) with an opening time of 0.8 seconds and a maximum throughput speed of 30 people per minute. Designed for plug-and-play simplicity, the turnstile features an integrated flap barrier control board with an LCD display and comes pre-integrated and factory-tested with optional card or fingerprint access control readers. The FBL700 measures 1200 x 300 x 980 mm with a 600 mm lane width, boasts a 5 million MCBF (Mean Cycles Between Failures) reliability rating, and incorporates crucial safety features including LED indicators, smooth unexposed hardware, and automatic upward barrier retraction during emergencies or power outages with an optional battery installed.
| Power Requirements | AC100 ~ 120V/200 ~ 240V, 50/60Hz |
|---|---|
| Working Temperature | -28°C ~ 60°C |
| Working Humidity | 5% ~ 80% |
| Working Environment | Indoor/Outdoor |
| Max. Speed of Throughput | 30 people per minute |
| Lane Width (mm) | 600 |
| Dimension (L*W*H) | 1200 * 300 * 980 (mm) |
| LED Indicator | Support |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SPCC (with black baking paint) |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Emergency Mode | Support |
| Security Level | Medium |
| MCBF | 5 million |
| Opening Time | 0.8s |
| Noise of Opening | ≤30dB |
