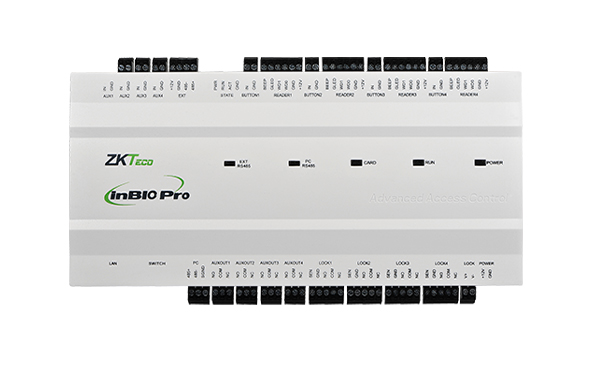

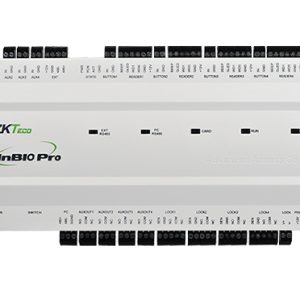

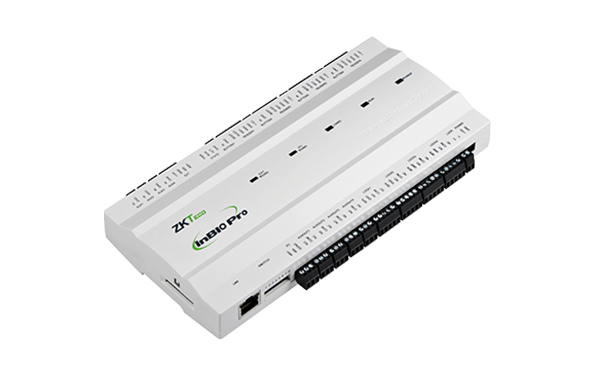

Zkteco inBio-460 Pro
- 4-Door Control: Centralized access management for up to 4 doors.
- On-Board Biometrics: Internal fingerprint matching on panel via RS-485.
- 12-Reader Support: Connects 8 RS-485 FR readers and 4 Wiegand readers.
- High Memory: Holds 30,000 cards, 3,000 fingerprints, and 100,000 logs.
- Expanded I/O: Offers 12 inputs and 8 Form-C relays for locks and aux devices.
- TCP/IP Network: Fast LAN/WAN setup with auto-discovery tools.
- Advanced Security: Supports anti-passback, multi-card access, and duress alerts.
- Software Ready: Native ZKBioSecurity support and free SDK included.
- Description
- Specifications
Description
InBio Pro Series is a project-oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication through LAN or WAN networks. The InBio Pro Series is the perfect match for the ZKBioSecurity web-based software platform to provide a fully featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes, such as fingerprint, card, and password, for a higher security level.
| Number of doors controller | 4 Door |
|---|---|
| Numbers of readers supported | 12 (8 RS-485 readers, 4 26-bit WLENG readers) |
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs: | 12 (4 Exit Buttons, 4 Door Status, 4 AUX) |
| Number of Outputs | 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output) |
| Cardholder Capacity | 30,000 |
| Fingerprint Capacity | 3,000 (optional 20,000) |
| Log Events Capacity | 100,000 |
| Communication | TCP/IP |
| Package Dimension | 350(L)×90(H)×300(W) mm |
| Package Weight | 3.7 kg |
| CPU | 32-bit 400 MHz CPU |
| RAM | 32M |
| Flash Memory | 128M |
| Power | 9.6V-14.4V DC |
| Operating Temp | 0-45°C |
| Operating Humidity | 20% to 80% |
